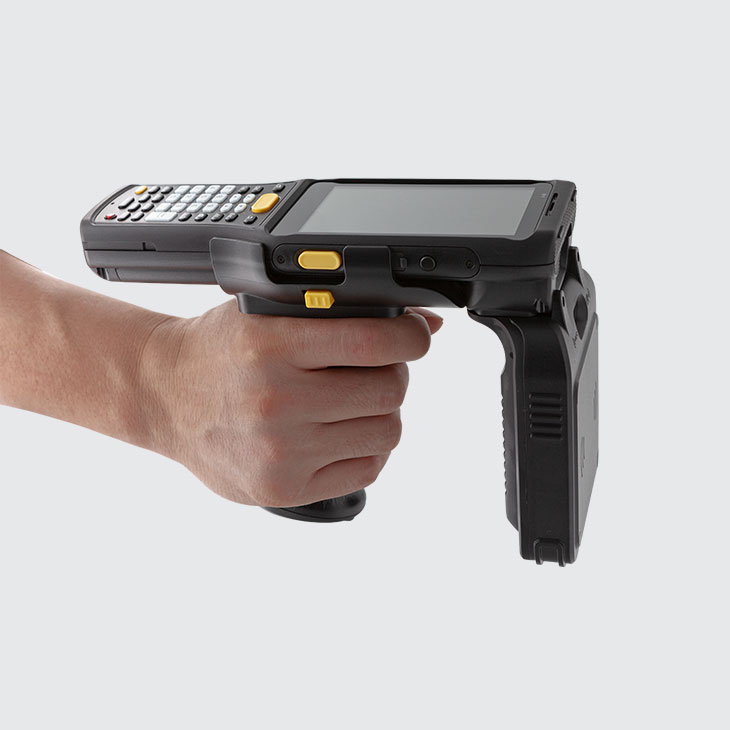

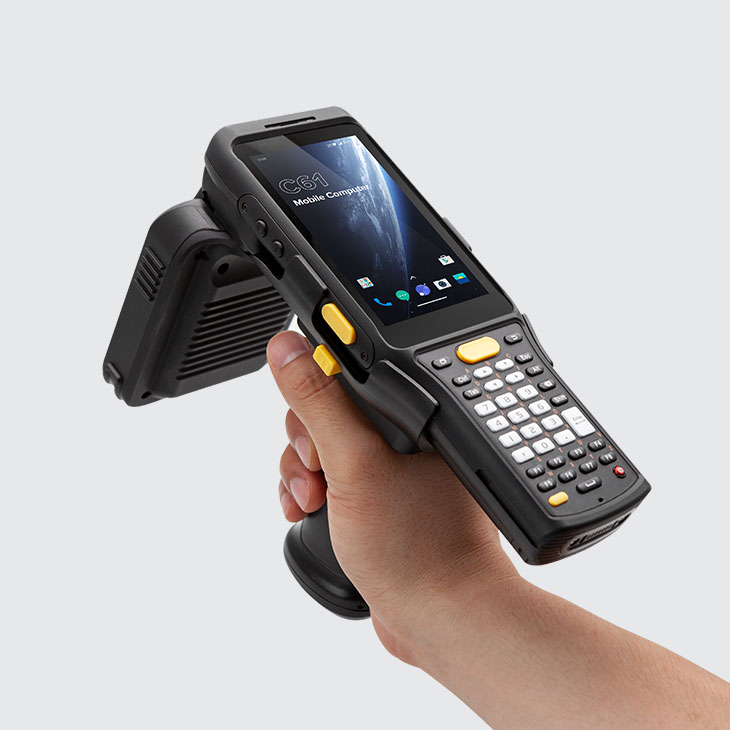

C61 UHF RFID Reader (Android 11/9)
Committed to Superior UHF Performance
Chainway C61 UHF is a high-class handheld terminal. Featured with a self-developed UHF module integrated with Impinj E710/R2000 chip, it possesses ultra-long distance/ultra-large-scale/bulk-tags reading ability with accuracy, stability, and speed. Built with Android 9.0/11.0 and Qualcomm Octa-core processor, C61 offers abundant options include different keypad versions (27/37/47 keys), a detachable 6700mAh battery supporting quick-charge, and optional 5200mAh battery for pistol grip, etc. This device can be easily implemented in various industries like logistics, manufacturing, retailing, etc.
Take Efficiency to a New Level
Features
Android 9 / 11
RAM+ROM: 3+32GB / 4+64GB (optional)
5200mAh Trigger Handle Batter
Qualcomm 1.8 / 2.0 GHz Octa-core
6700mAh Removable Battery
IP65 Sealing
Functions
UHF RFID (Impinj E710/R2000 Chip)
NFC
Dual-band WIFI
Barcode Scanning (Optional)
13MP Autofocus Camera
Specifications
Physical Characteristics
Dimensions
202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in.
Weight
13.05 oz. / 370 g(SE4710); 14.25 oz. / 404 g(SE4850); 26 .05 oz. / 738 g(SE4850, UHF, pistol battery) Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery
Display
4-inch high definition display,TN α-Si 800*480
Battery
6700 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h) Continuous use: over 12 hours (depending on user environment) Charging time: 3.5 hours (charge device by standard adaptor and USB cable)
Touch Panel
Multi-touch panel, gloves and wet hands supported
Speaker
Support
Vibrator
Support
Microphone
2 Microphones, 1 for noise reduction
Interfaces
Android 9: USB Type-C, USB 3.0, OTG, extended thimble Android 11: USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for Micro SIM card, 1 slot for TF card
Keypad
Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Indicator LED
Power, charging, status indicator
Communication
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations; Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc.
WWAN (Europe, Asia)
G: 850/900/1800/1900MHz 3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)
2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: Android 9: B2/B4/B5/B7/B8/B12/B17/B38 Android 11: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Bluetooth
Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR Android 11: Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 9; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, SafeUEM supported Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Android 9: Qualcomm Snapdragon™ 450 Octa-core, 1.8 GHz Android 11: Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM
3 GB + 32 GB / 4 GB + 64 GB
Expansion
Supports up to 128 GB Micro SD card
UHF RFID
Engine
CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

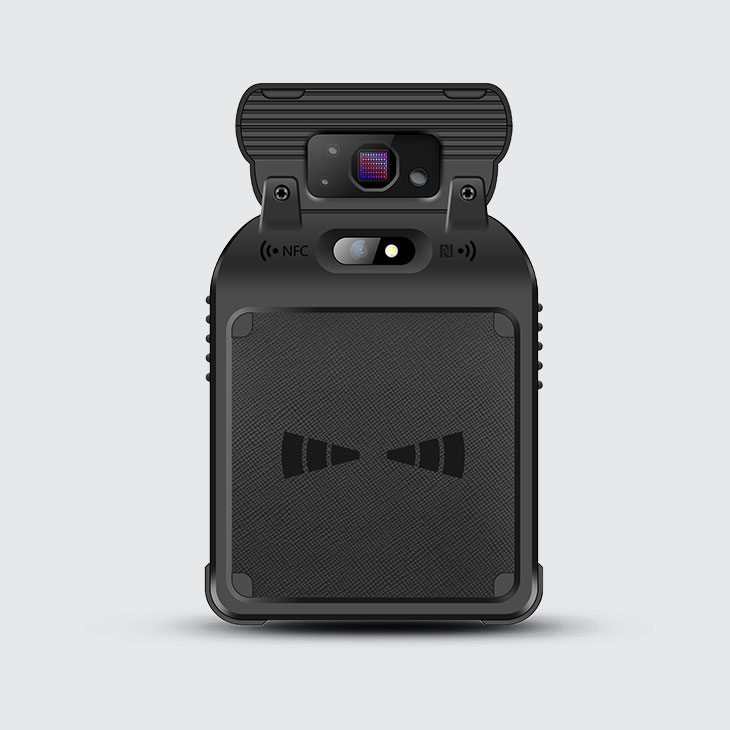

Antenna
Circular Polarized Antenna (4 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
R/W ranges
Up to 15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate
900+ tags/sec
Communication Mode
Pin Connector
User Environment
Operating Temp.
-4℉ to 122 ℉ / -20 ℃to 50 ℃
Storage Temp.
-40℉ to 158℉ / -40 ℃ to 70 ℃
Humidity
5% RH to 95% RH (non condensing)
Drop Specification
Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
1000 x 0.5 m / 1.64 ft. falls at room temperature
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra: SE4710/SE4750SR/SE4750MR/SE4750DP/SE4850; Honeywell: N6603/EX30
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Camera
Rear Camera
Rear 13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional accessories
Accessories

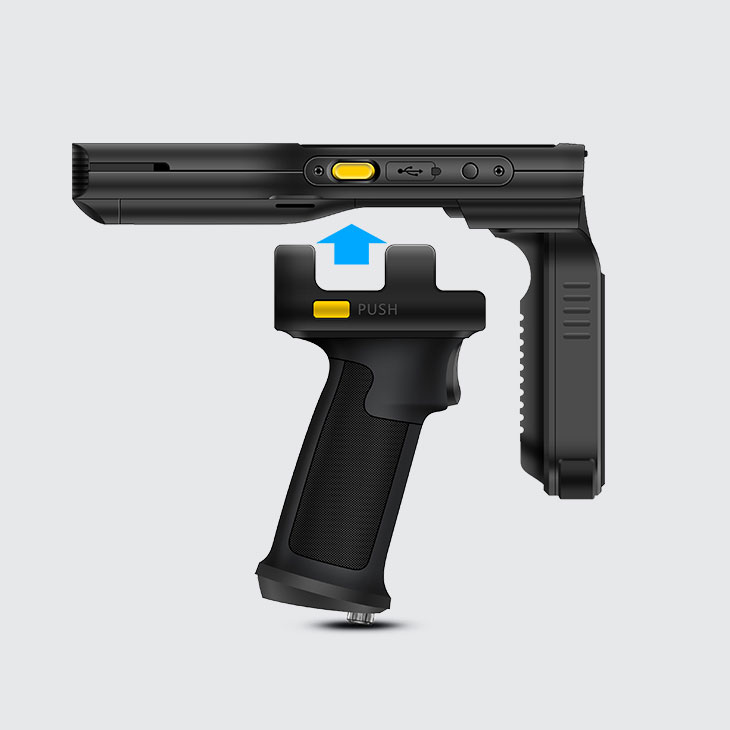

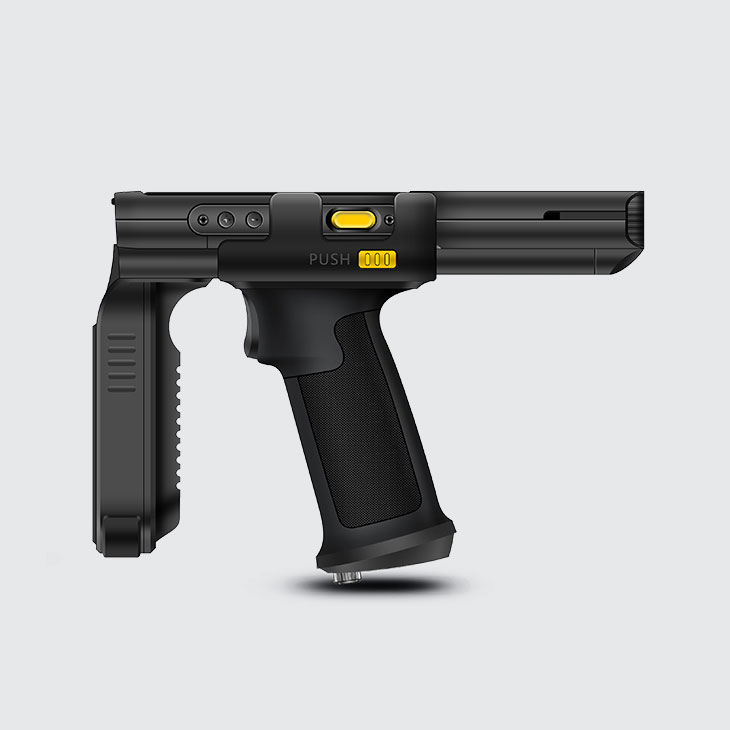

Separate handle with one button； Handle + battery (handle battery 5200 mAh, one button) ; UHF back clip + handle (5200 mAh, one button) ; Wrist Strap; Charging Cradle
