C72 UHF RFID Reader (Android 11/8.1)
Industry-leading RFID Performance
Chainway C72 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded Impinj E710 / R2000, it enables more than 15m of read distance outdoors. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.
Take Efficiency to a New Level
Features
Android 8.1 / 11
RAM+ROM: 3+32GB / 4+64GB (optional)
8000mAh Powerful Battery
Cortex-A53 2.5/2.3 GHz Octa-core
5.2” IPS 1080P Screen
4G / Dual-band WIFI
Functions
UHF RFID (Impinj E710/R2000 Chip)
NFC (Optional)
Accurate GPS
Barcode Scanning (Optional)
13MP Autofocus Camera
Specifications
Physical Characteristics
Dimensions
164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight
654 g / 23.07 oz.
Display
5.2'' IPS LTPS 1920 x 1080
Battery
Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Speaker
Vibrator
Microphone
Speaker, 2 microphones
Interfaces
USB 2.0 Type-C, OTG, Type-C headphones supported
Card slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Keypad
4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors
Light sensor, proximity sensor, gravity sensor
Indicator LED
Communication
WLAN
IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (Europe, Asia)
Android 8.1: WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 WWAN(Overseas): 2G: 850/900/1800/1900MHz 3G: B1,B2,B4,B5,B8 4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66 Android 11: 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (America)
Depending on the country's ISP
Bluetooth
Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11: Bluetooth 5.0
Vo-LTE
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System
Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM
3GB + 32GB / 4GB + 64GB (optional)
Expansion
Supports up to 128 GB Micro SD card
UHF RFID
Engine
CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Antenna

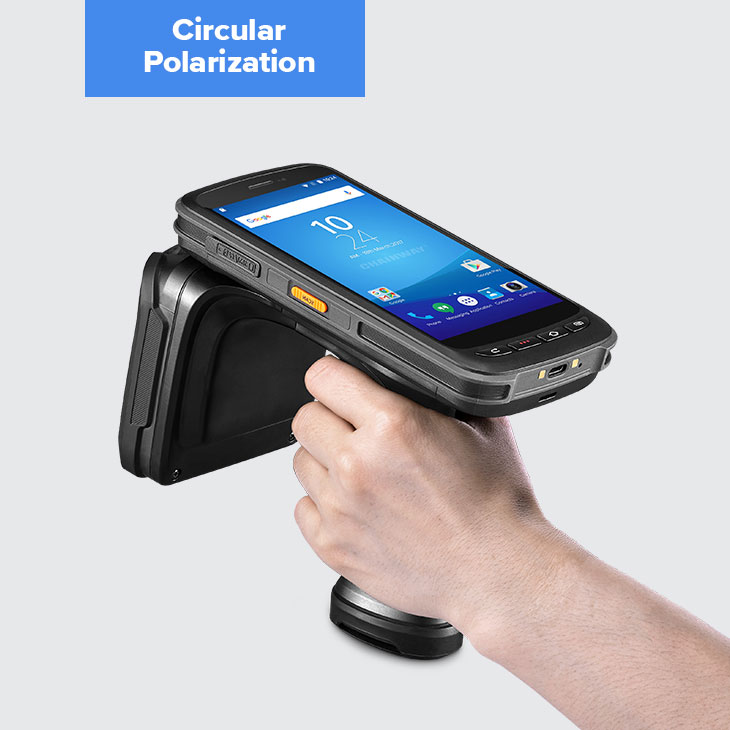

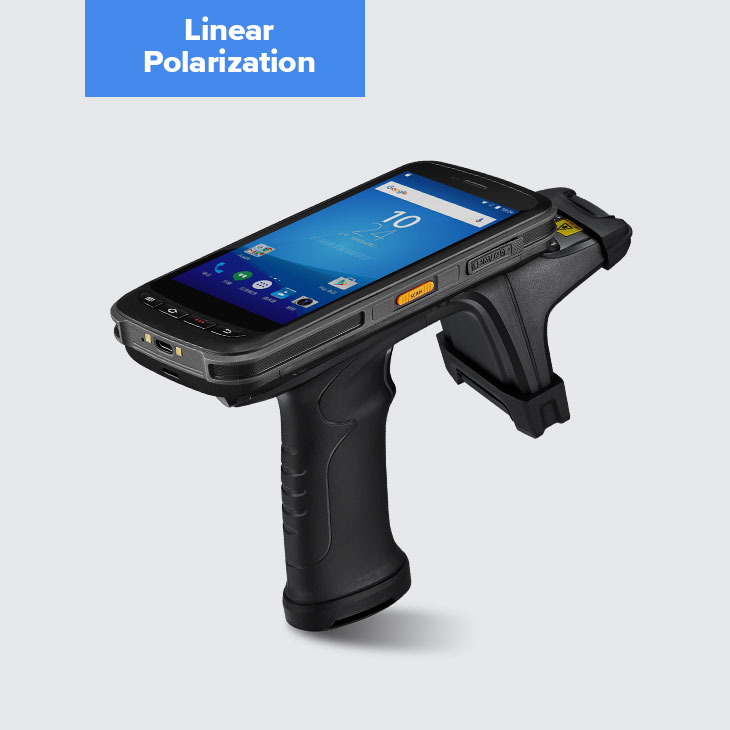

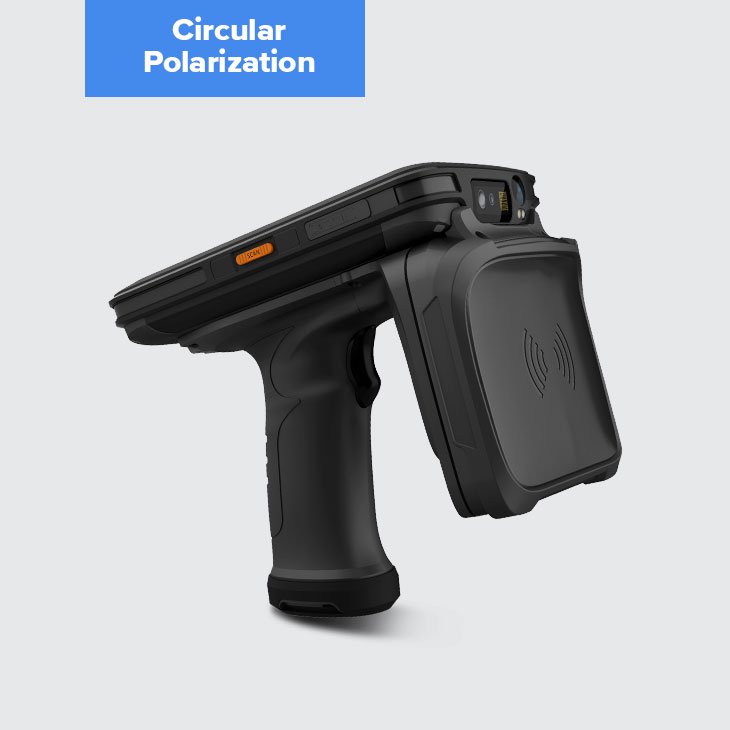

Linear polarization(1.8 dBi); circular polarization (4 dBi)
Power
1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
R/W ranges
Up to 15m (circular polarization, open outdoors, Impinj MR6 tag); Up to 7m (linear polarization, open outdoors)
Fastest Read Rate
900+ tags/sec (circular polarization)
Communication Mode
User Environment
Operating Temp.
4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.
-40 °F to 158 °F / -40 °C to 70 °C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
Host IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
2D Imager Scanner
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Camera
Rear Camera
13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
