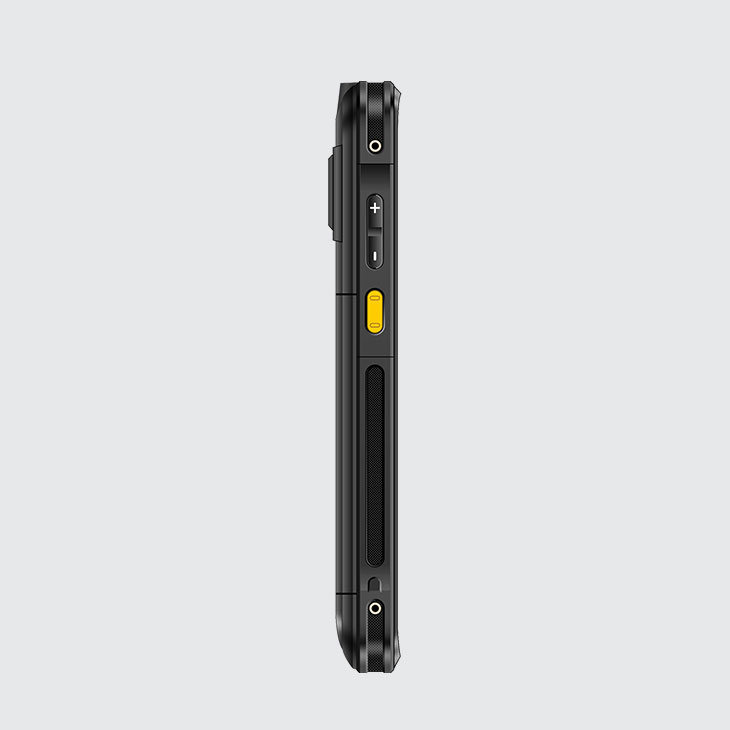

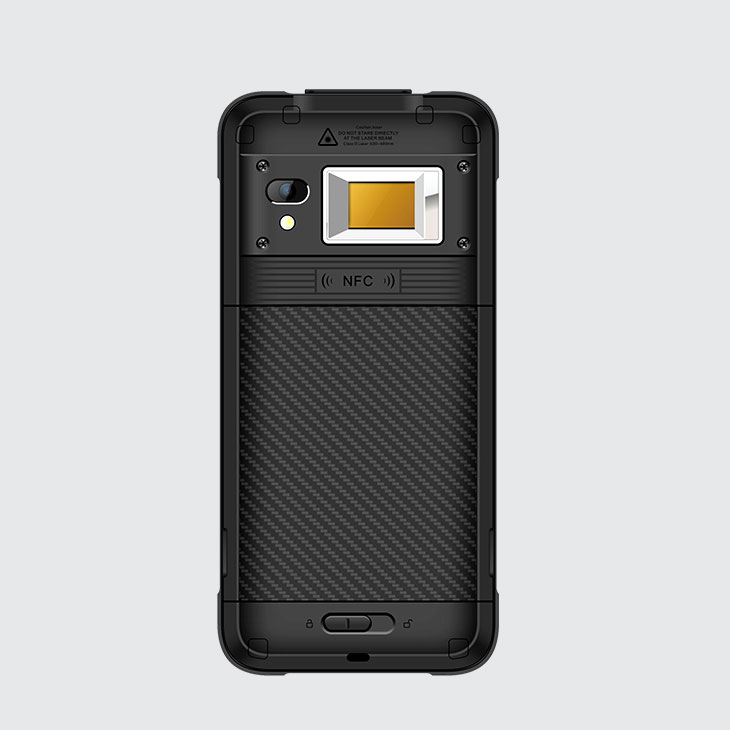

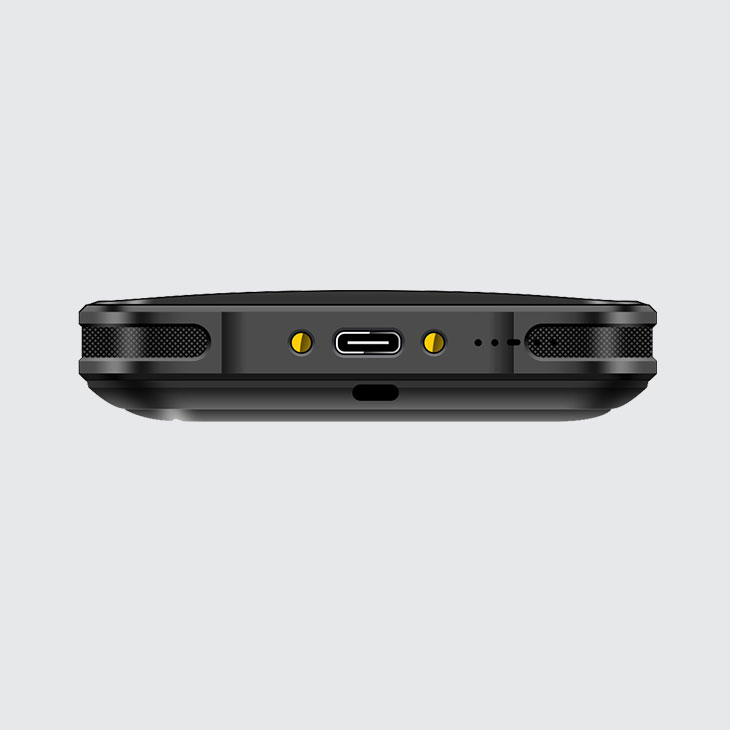

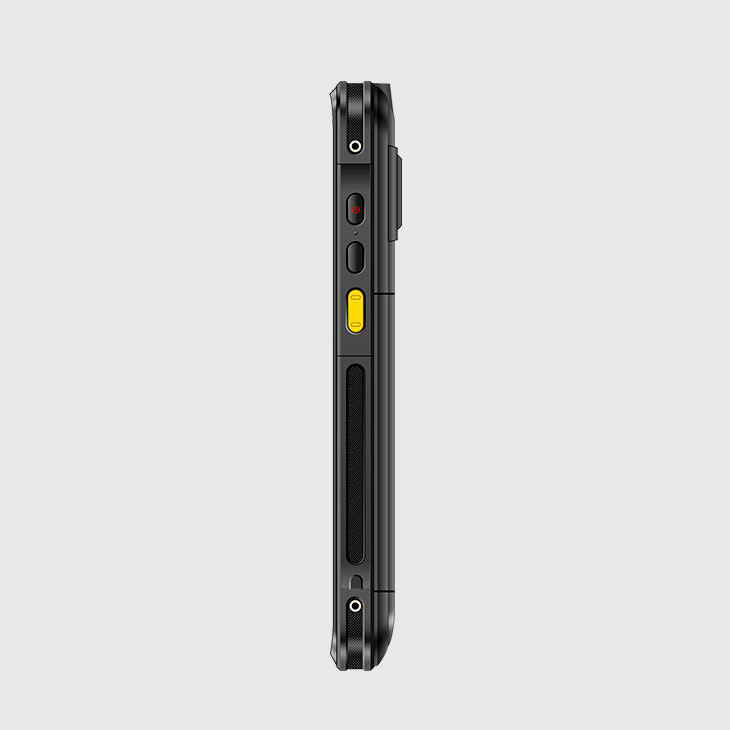

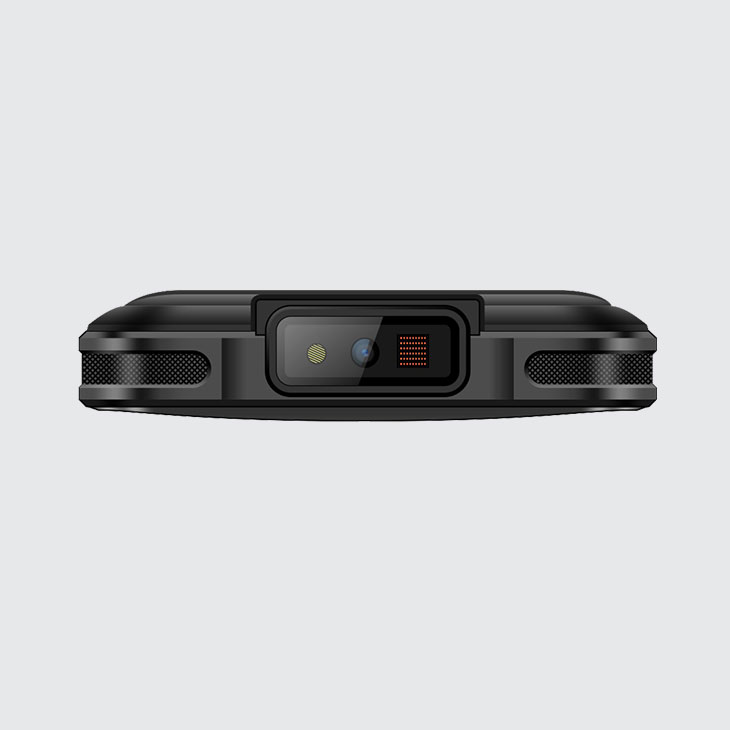

C66 Fingerprint Scanner (Android 11)
More Powerful, More Extensible, More Advanced in Every Way
Chainway C66 is a biometric handheld terminal.It is based on the Android 11 OS and equipped with Qualcomm Octa-core CPU, 5.5″ high-definition touch screen, large capacity detachable battery, supports fast charging, and various accessories. Additionally, it has integrated high-performance biometric functions to support fingerprint identification, IRIS recognition, and face recognition applications with high security and flexibility. Also, it can be equipped with barcode scanning, NFC, and other functions, which are widely used in census, national election, security, national defense,etc.
Take Efficiency to a New Level
Features
Android 11 OS
5.5″ IPS Display
QC3.0 Quick Charge and RTC
Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM: 3+32GB / 4+64GB (optional)
Functions
Fingerprint Recognition
NFC
GPS, BeiDou，GLONASS
Barcode Scanning (Optional)
13MP Autofocus Camera
Specifications
Physical Characteristics
Dimensions
160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
Weight
297 g / 10.47 oz. (device with battery)
Display
5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Battery
Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh ) 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Speaker
Support
Vibrator
Support
Microphone
2 Microphones, 1 for noise reduction
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Keypad
1 power key, 2 scan keys, 2 volume keys
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Indicator LED
Power, charging, status indicator
Communication
WLAN
Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz 2G: 850/900/1800/1900 MHz WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)
2G: 850/900/1800/1900 MHz 3G: 850/900/1900/2100 MHz 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System
Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU
Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM
3 GB + 32 GB / 4 GB + 64 GB
Expansion
Supports up to 128 GB Micro SD card
UHF RFID
Engine
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Antenna
Power
R/W ranges
Fastest Read Rate
Communication Mode
User Environment
Operating Temp.
-4oF to 122oF / -20 ℃ to +50 ℃
Storage Temp.
-40oF to 158oF / -40 ℃ to +70 ℃
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Imager Scanner
1D Symbologies
2D Symbologies
Camera
Rear Camera
Rear 13MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Optional accessories
Accessories
Wrist Strap; Rubber Bumper; Charging Cradle
