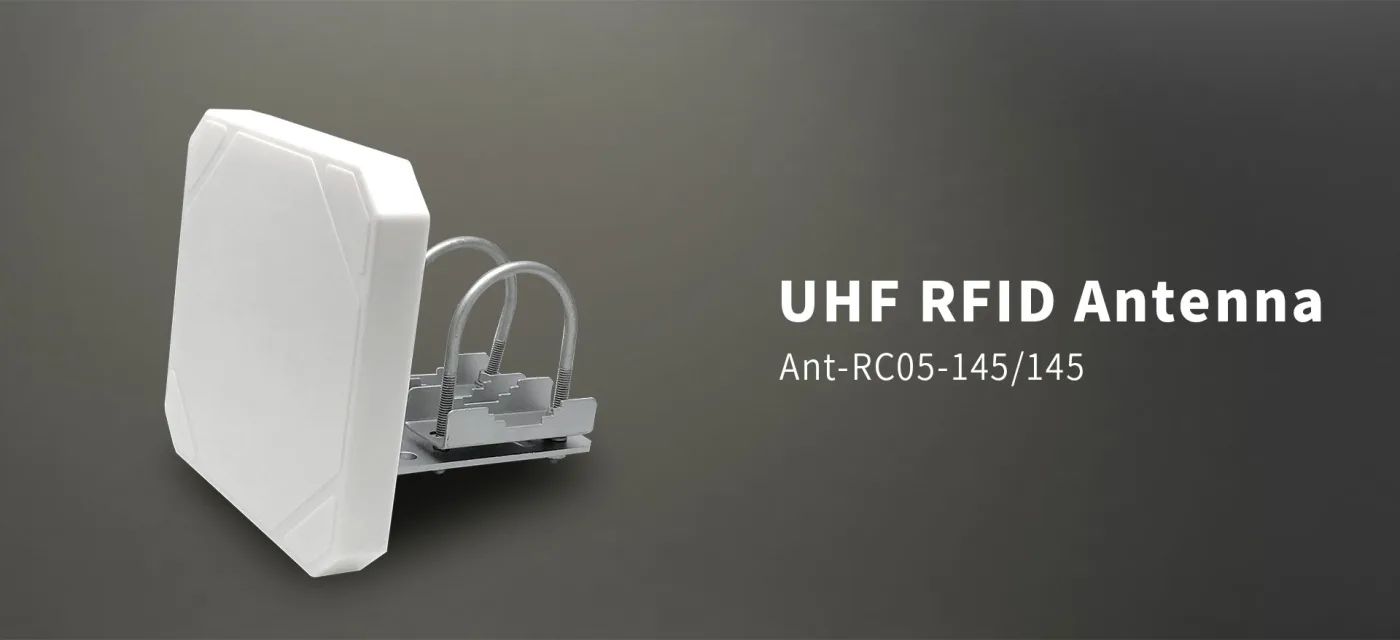

Ant-RC05 5dBi Panel Antenna

Ant-RC05 5dBi Panel Antenna

This is the 5dBi Panel Antenna launched by Chainway. Possessing front-to-rear ratio, narrow side-lobe, and 5dBi gain, it can perform stably and read multi-tags under a moderate range accurately and quickly with an assurance of high data security. Visually, this antenna is small in size, light in weight, and with a low profile, making it easy to install. Meanwhile, it got a certification from IP67, which is a high protection rating. To summarize, this antenna could be of advantage in a variety of industries, such as logistics, warehousing, access control and materials management, etc.

Price

Custom quote

Get a Quote
Ant-RC05 5dBi Panel Antenna

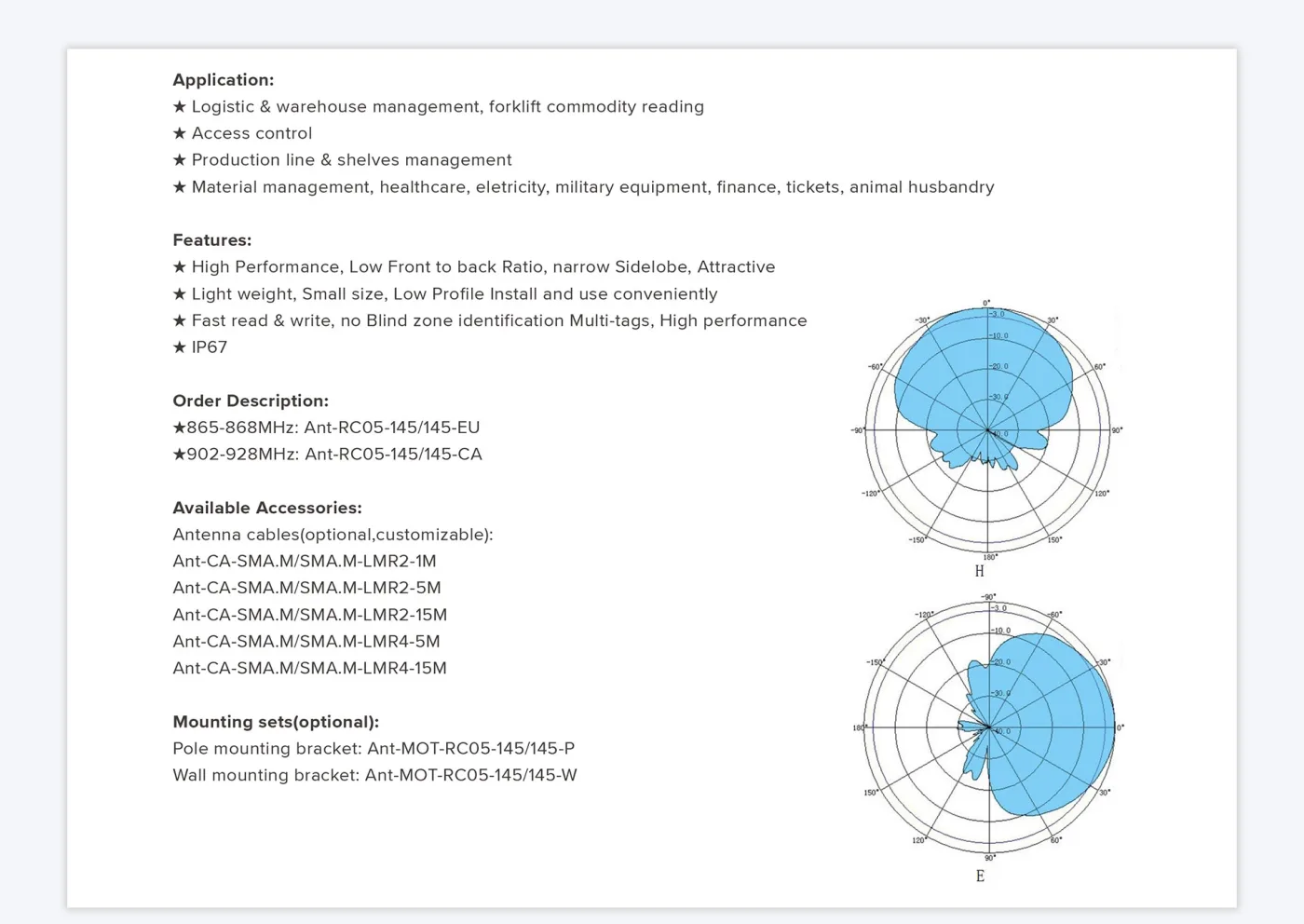

Features

Light Weight and Small Size Logistics & Warehouse

Request a Quote

Selected configuration

Ant-RC05 5dBi Panel Antenna

Downloads

Technical Specifications

Physical Characteristics
Weight 0.73kg (with mounting bracket)
Sealing IP67
Gain 5dBi
VSWR ≤1.3
Radome color white
Connector Type SMA female
Frequency Range 902-928MHz / 865-868MHz
Input Impedance 50Ω
Max Input Power 20W
Radome Material ABS

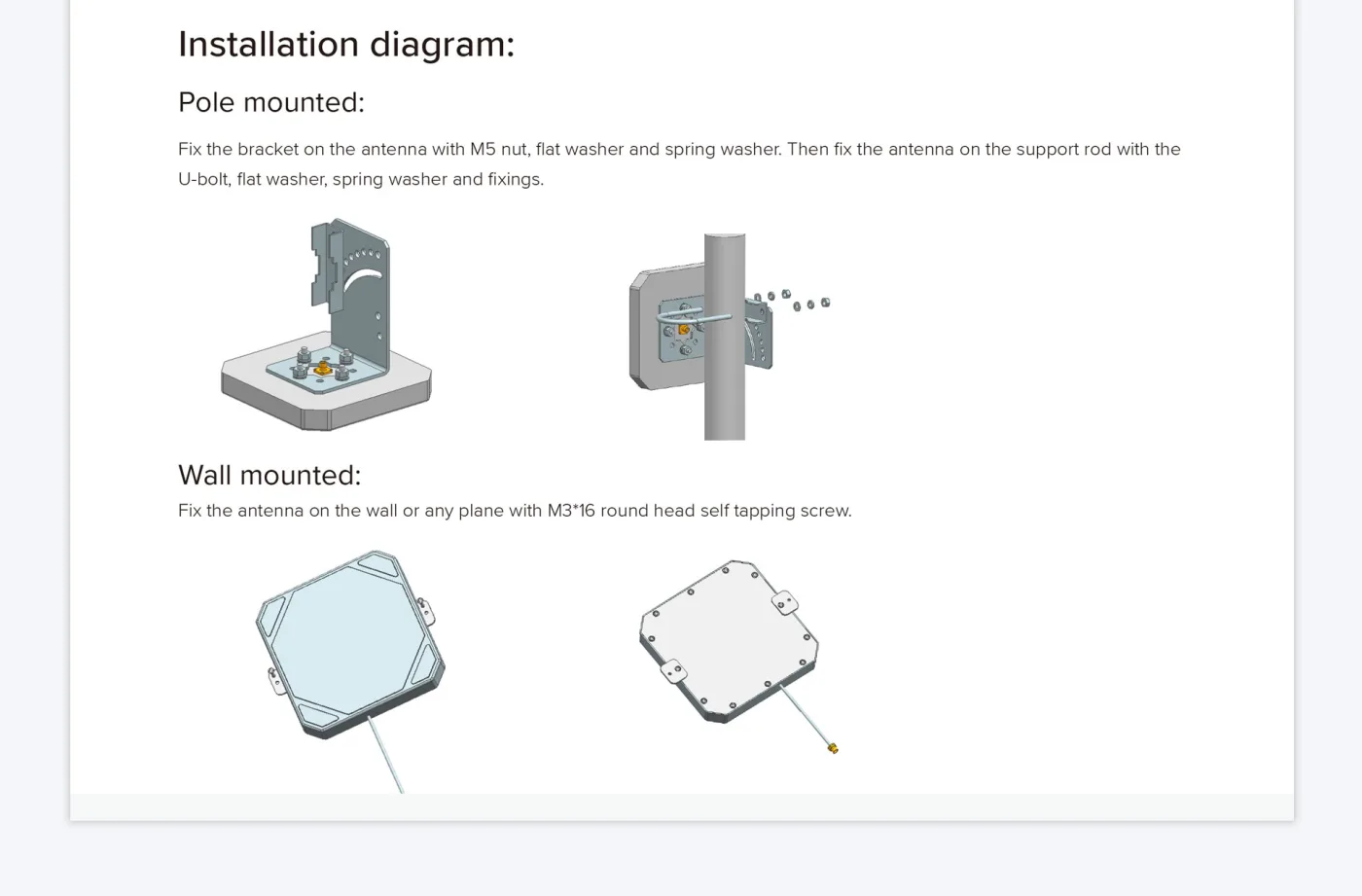

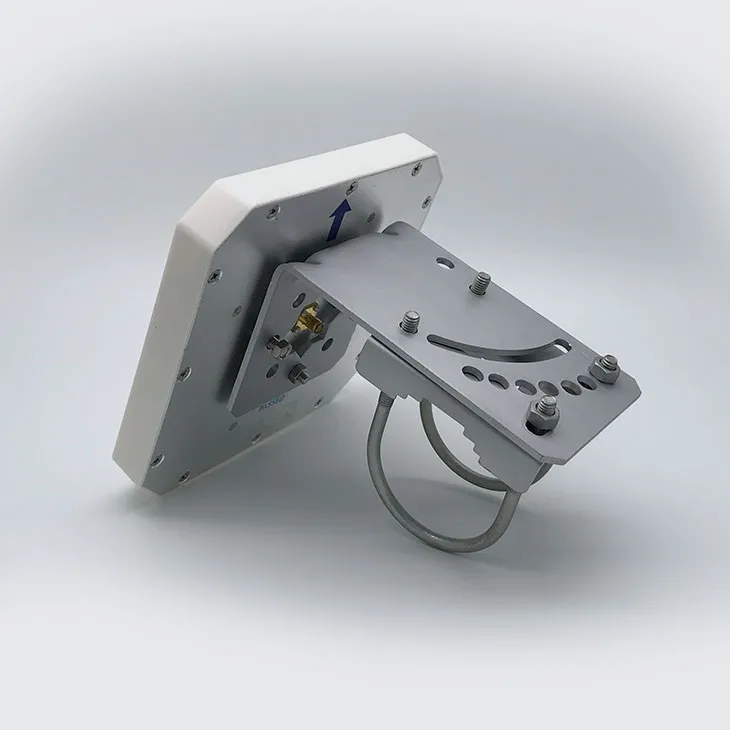

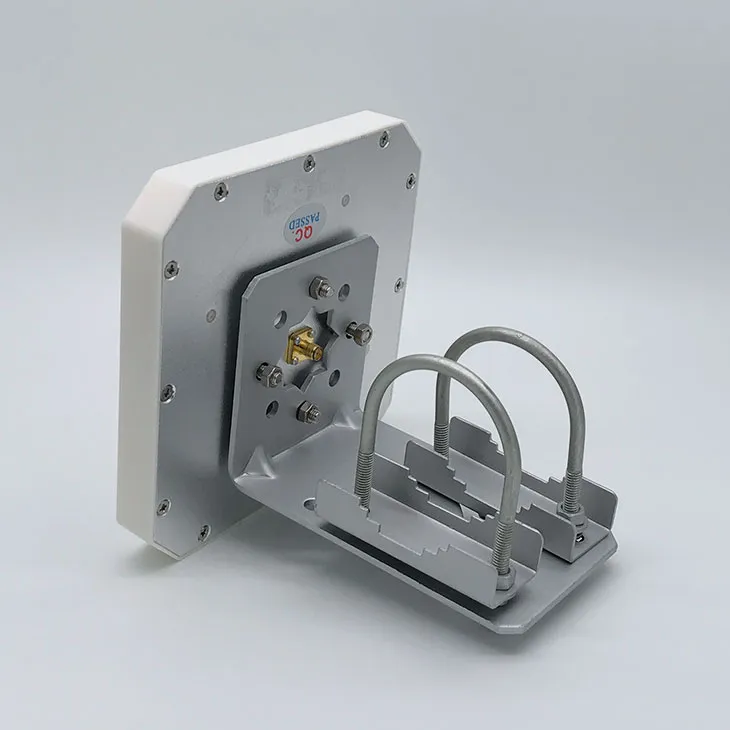

Installation mode Pole mounted or Wall mounted
Polarization Type RHCP
Front to back Ratio ≥17dB
Rated Wind Velocity 60m/s
Lightning Protection DC Grounded
Dimensions H*W*D (mm) 145*145*20(mm)
Operating Temperature -40ºC/+60ºC
Support Pole Diameter φ30-φ50(mm)
3dB Beam-Width. E-Plan 70°
3dB Beam-Width. H-Plan 80°
Radiant board material aluminum
