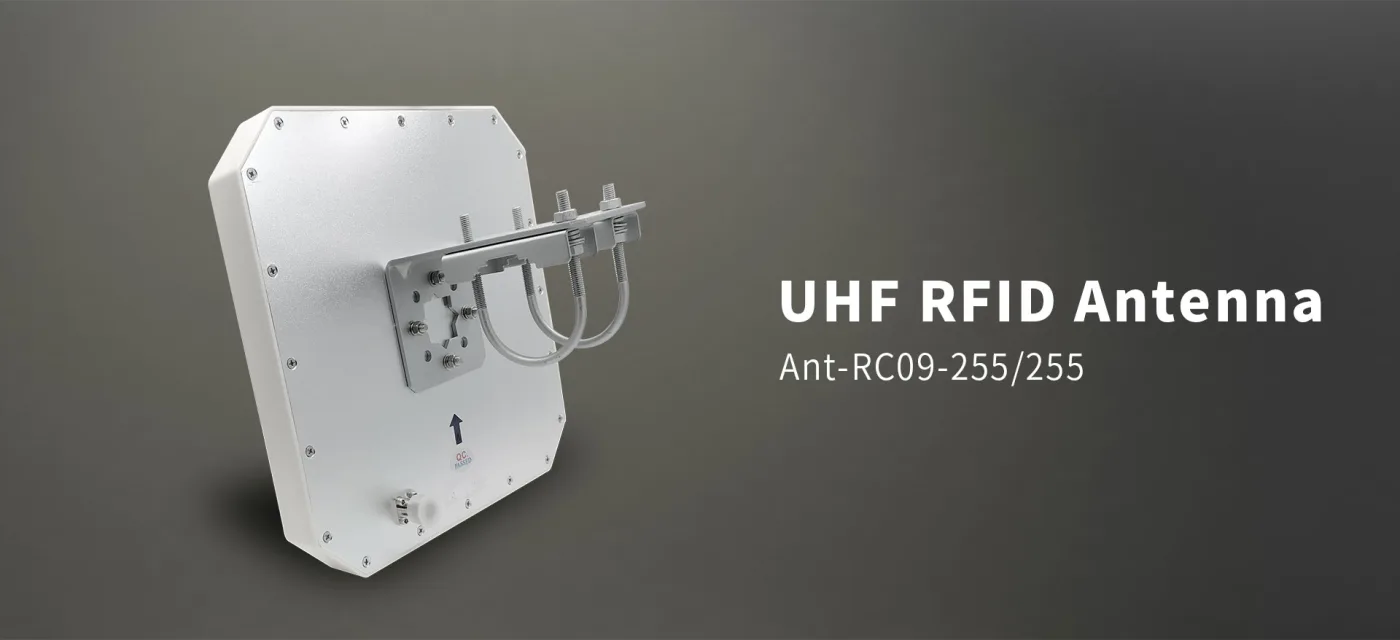

Ant-RC09 9dBi Panel Antenna
This is the 9dBi Panel Antenna launched by Chainway. With the characteristics of fast reading/writing speed, while it could support long-distance reading and bulk-tags reading with the assurance of high data security. The device is portable, lightweight, and effortless to install, and intermittently has a high IP protection rating. Keeping this in consideration, Ant-RC09-255/255 is an ideal antenna to be deployed in various industries like logistics, warehousing, transportation, retail, medical treatment, electricity power, finance, ticket management, and livestock industry, etc.
Price
Custom quote
Features
Fast Read & Write
Logistics & Warehouse
Request a Quote
Selected configuration
Ant-RC09 9dBi Panel Antenna
Technical Specifications
Physical Characteristics
| Weight | 1.27kg (with mounting bracket) |
| Sealing | IP67 |
| Gain | 9dBi |
| VSWR | ≤1.3 |
| Radome color | Off-white |
| Connector Type | N-Type Female |
| Frequency Range | 902-928MHz / 865-868MHz |
| Input Impedance | 50Ω |
| Max Input Power | 20W |
| Radome Material | ABS |

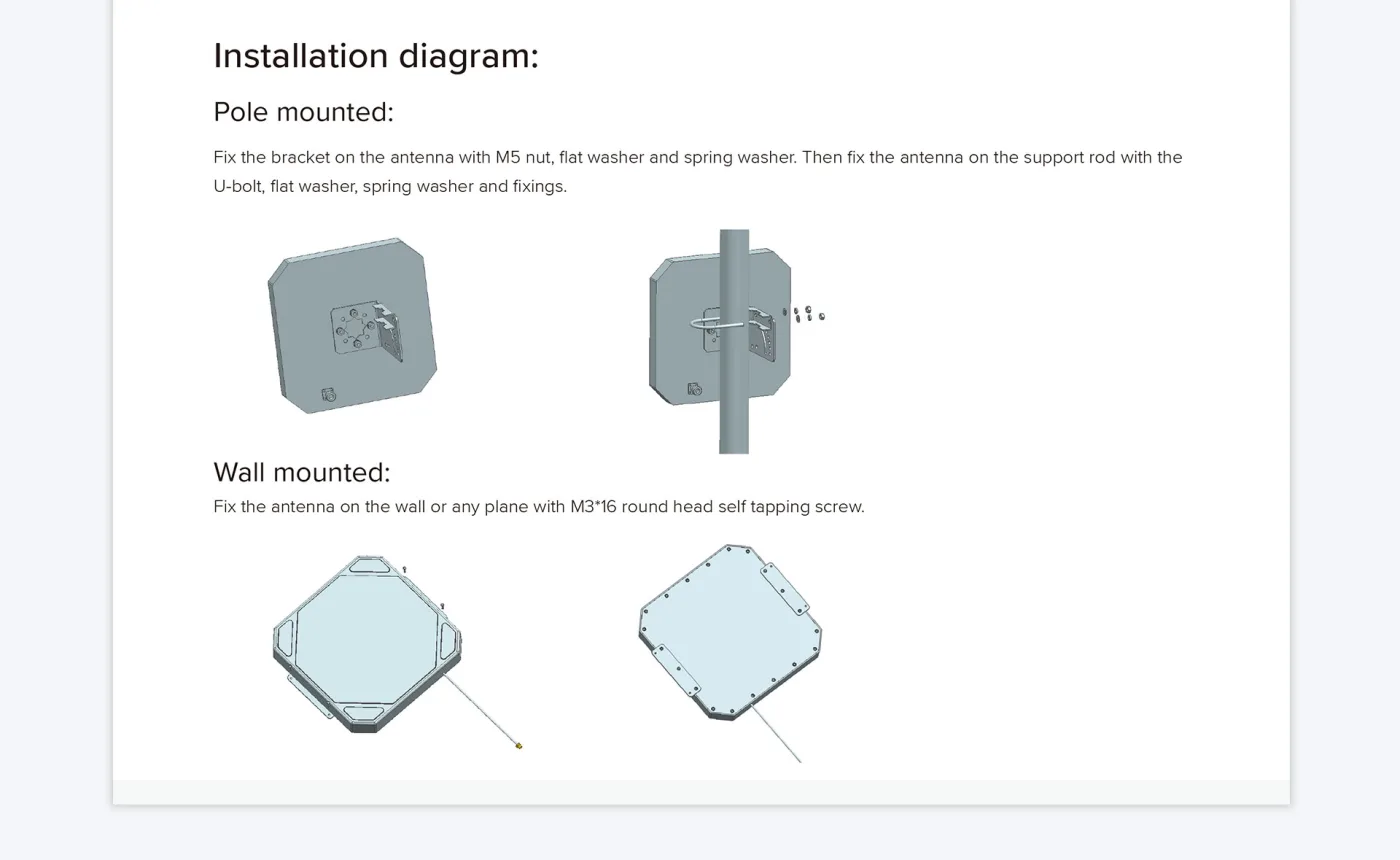

| Installation mode | Pole mounted or Wall mounted |
| Polarization Type | RHCP |
| Front to back Ratio | ≥17dB |
| Rated Wind Velocity | 60m/s |
| Lightning Protection | DC Grounded |
| Dimensions H*W*D (mm) | 255*255*30(mm) |
| Operating Temperature | -40ºC/+60ºC |
| Support Pole Diameter | φ30-φ50(mm) |
| 3dB Beam-Width. E-Plan | 55° |
| 3dB Beam-Width. H-Plan | 60° |
| Radiant board material | aluminum |
