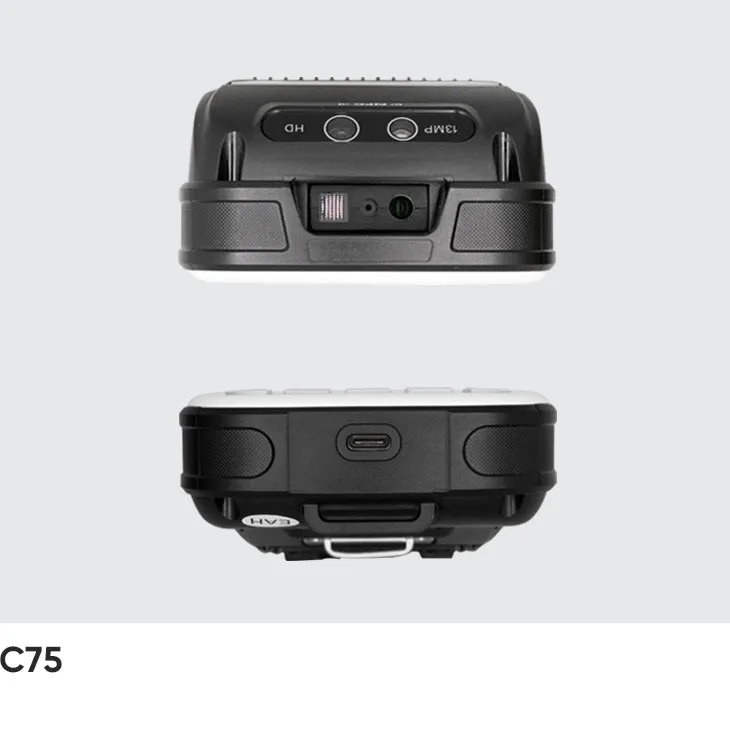

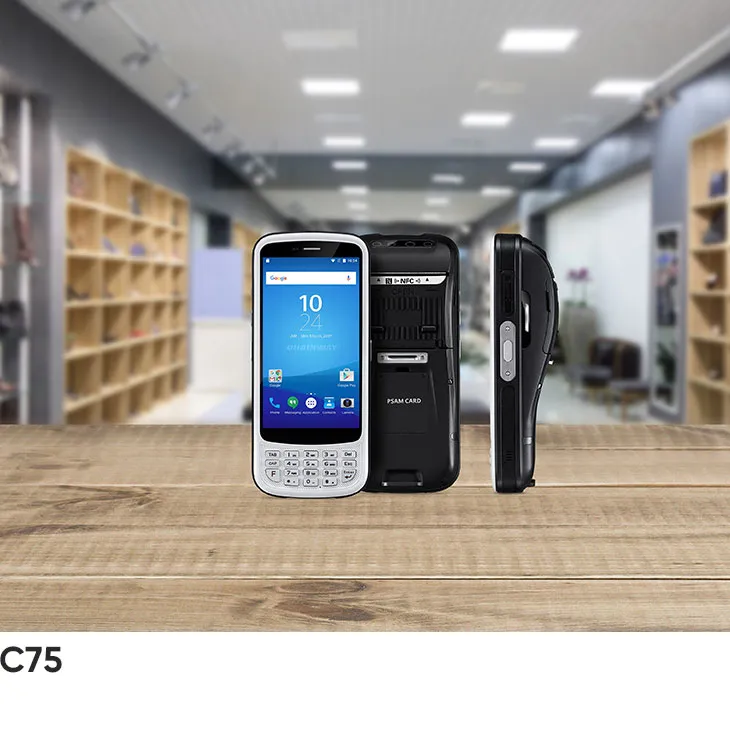

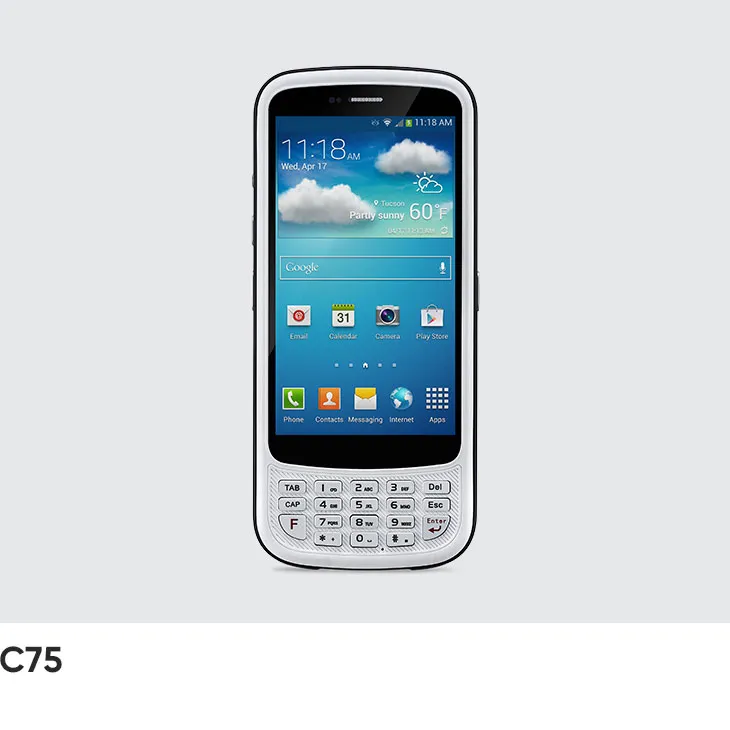

C75 Mobile Computer with Printer
Android 11.0, Google Mobile Services, 2.3 GHz Octa-core, 5.2'' 1920*1080 display, Bluetooth (BLE, 5.0), 4G(LTE), GPS, Wi-Fi (802.11 a/b/g/n/ac), NFC, Camera (13MP auto-focus), Micro SD-Slot, Battery 8000 mAh, IP54, Printer, RAM 4 GB, Flash 64 GB, 2D SE4710
Starting from
€622
Google Mobile
Services
Services
Android Enterprise
Recommended
Recommended
90-day Security
Updates
Updates
Features
Android 11
Thermal Printing
Configurator
+€2
+€25
+€1
Request a Quote
Selected configuration
C75AL-2SE-N-CPTC8R4A11
€622
Total list price:
€622
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 186.89*83.99*35.04-49.49mm |
| Weight | 507g/17.88oz |
| Display | 5.2'' IPS LTPS 1920 x 1080P |
| Power | Main battery: Li-ion, rechargeable, 8000mAh |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator |
| Interfaces | USB 2.0 Type-C, OTG |
| Expansion Slot | 2 PSAM slots at most (ISO7816 protocol), 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| Audio | 1 microphone；1 speaker；receiver |
| Keypad | 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Sealing | IP54 |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Operating Temp. | -4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5%RH - 95%RH non condensing |
Communication
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS19003G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41 |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Operating System | Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
| CPU | Octa-core 2.3GHz |
| RAM+ROM | 3GB + 32G / 4GB + 64GB (optional) |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| 2D Imager Scanner | Zebra SE4710 |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Frequency | 13.56MHz |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Range | 2-4cm |
| ESD | ±15KV air discharge, ±6KV conductive discharge |
| Rate | 85 mm/s |
| Camera | 13MP Autofocus with flash |
| Colour | Black + White |
| Paper Width | 58 mm |
| Paper Length | 5.45 m |
| Paper Diameter | 3 cm |
| Image Size (pixel) | 384 dots |
