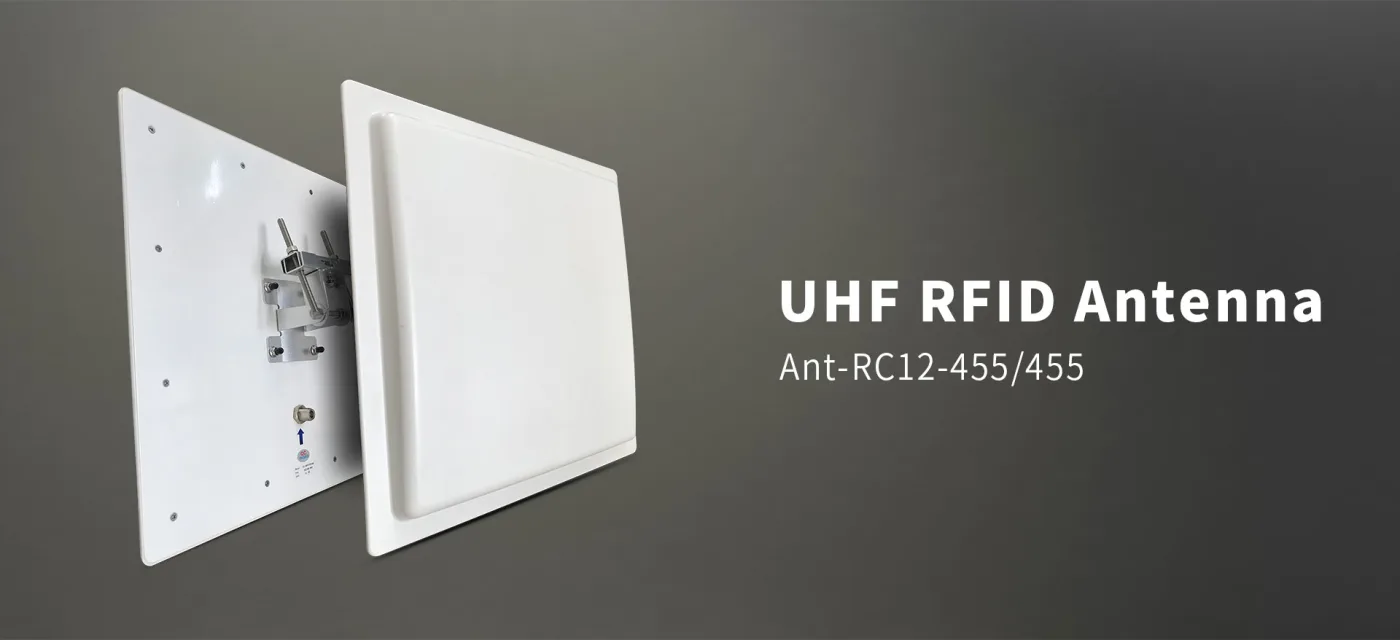

Ant-RC12 12dBi Panel Antenna

Ant-RC12 12dBi Panel Antenna

This is the 12dBi Panel Antenna launched by Chainway. Featured with high sensitivity, superior reading performance, long-distance/bulk-tags reading ability, it also can ensure accuracy, speed, and high security. Meanwhile, it possesses an IP67 protection rating and good waterproofness. These parameters make the device fit perfectly for peak performance across a spectrum of industries, including intelligent transportation, warehousing, event management, production-line management, inventive retail strategies, financial management, and medical equipment management, etc.

Price

Custom quote

Get a Quote
Ant-RC12 12dBi Panel Antenna

Features

Fast Read & Write Intelligent Transport System

Request a Quote

Selected configuration

Ant-RC12 12dBi Panel Antenna

Downloads

Technical Specifications

Physical Characteristics
Weight 2.66kg (with mounting bracket)
Sealing IP67
Gain 12 dBi
VSWR ≤1.3
Radome color Off-white
Connector Type N-Type Female
Frequency Range 902-928MHz / 865-868MHz
Input Impedance 50Ω
Max Input Power 20W
Radome Material ABS
Installation mode Pole mounted
Polarization Type RHCP
Front to back Ratio ≥17dB
Rated Wind Velocity 60 m/s
Lightning Protection DC Grounded
Dimensions H*W*D (mm) 445*445*30(mm)
Operating Temperature -40ºC/+60ºC
Support Pole Diameter φ30-φ50(mm)
3dB Beam-Width. E-Plan 38°
3dB Beam-Width. H-Plan 40°
Radiant board material aluminum
