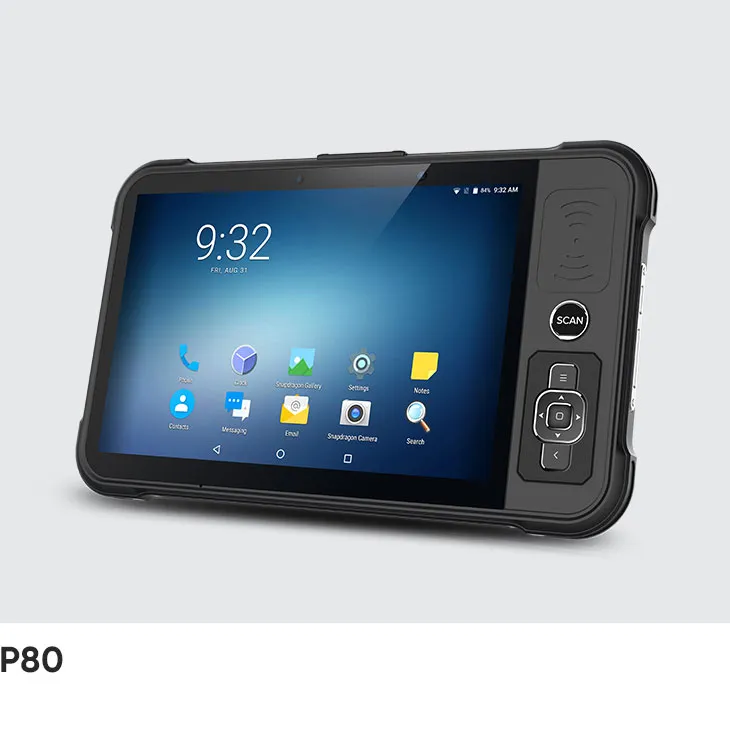

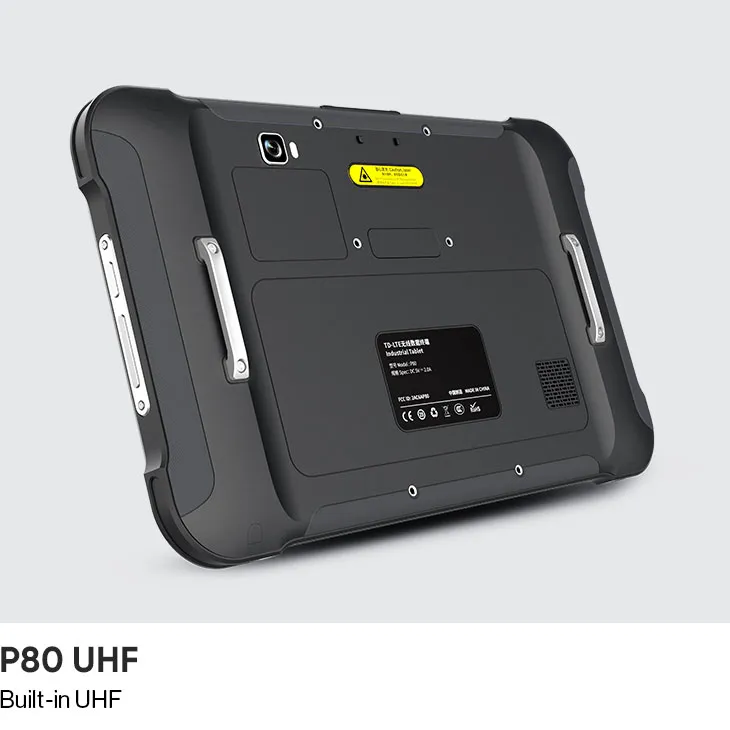

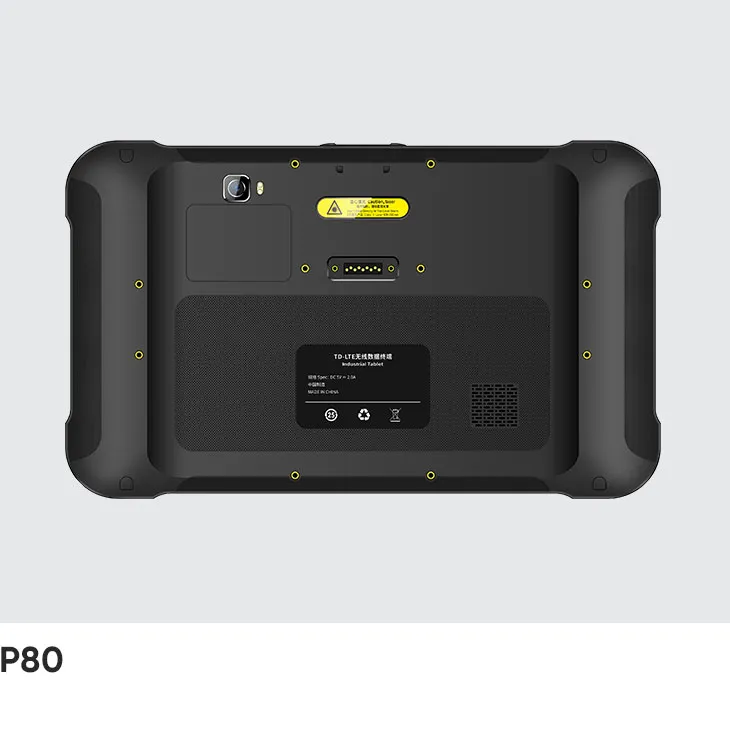

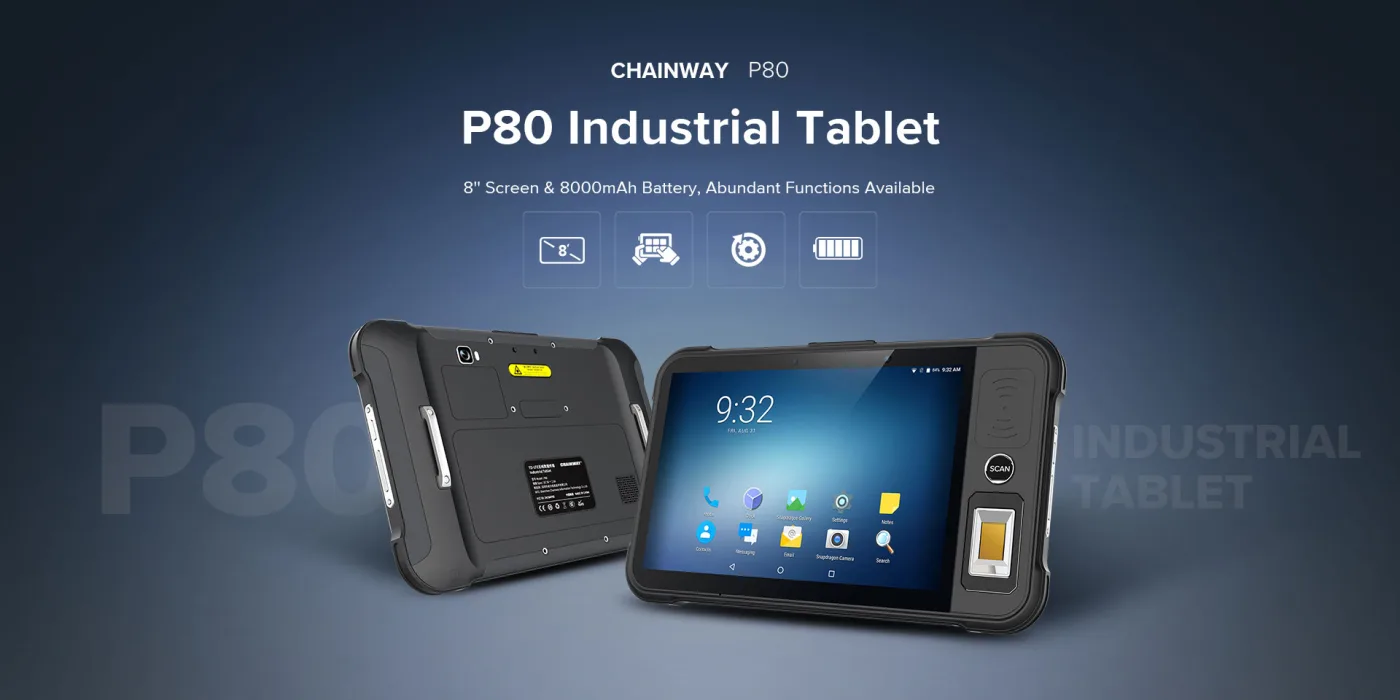

P80 Industrial Tablet (Android 9)
Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.
Starting from
€484
Google Mobile
Services
Services
Android Enterprise
Recommended
Recommended
90-day Security
Updates
Updates
Features
Android 9

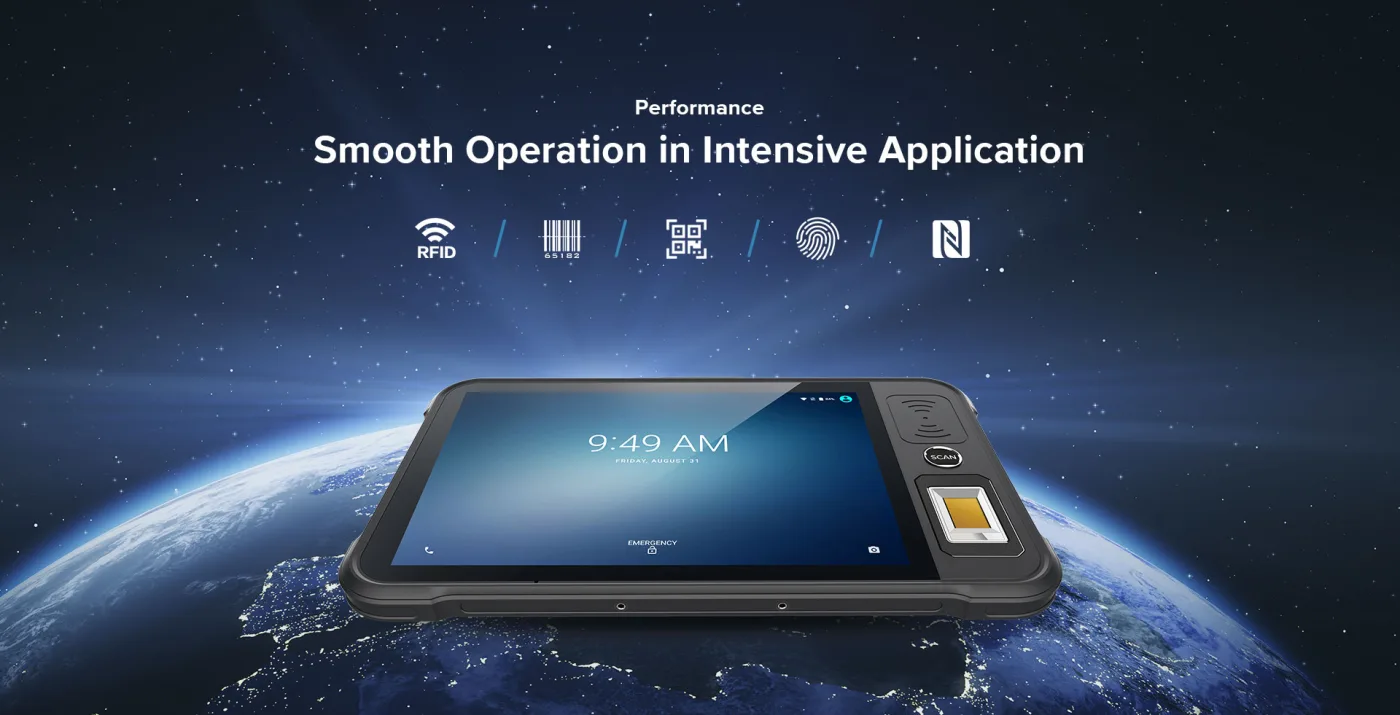

Optional Barcode, UHF, NFC, Fingerprint, and More
Configurator
+€10
+€6
+€29
+€11
+€44
+€1
+€4
+€4
+€100
+€194
+€71
+€23
Request a Quote
Selected configuration
P80 Industrial Tablet (Android 9)
€484
Total list price:
€484
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 250.8 mm x 152.0 mm x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version ) |
| Weight | 700 g / 24.7 oz. ( for standard version ) |

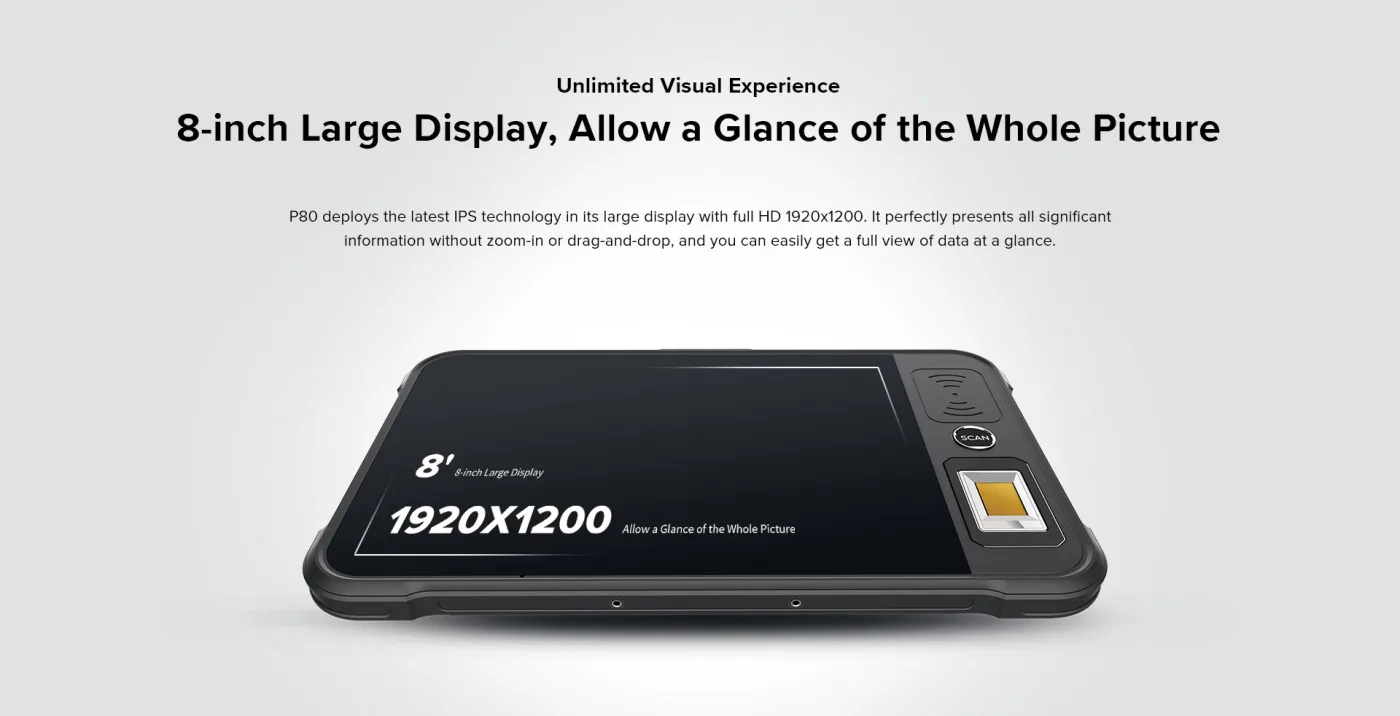

| Display | 8'' IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800 |
| Power | 1W ( 30dBm, +5dBm to +30dBm adjustable ) |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator |
| Interfaces | USB 2.0 Type-C, OTG |
| Expansion Slot | 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| Audio | 1 microphone；1 speaker；receiver |
| Keypad | 1 front key, 1 volume key, 1 power key, direction key (optional) |
| Sensors | Accelerometer sensor, geomagnetic sensor, gyroscope |

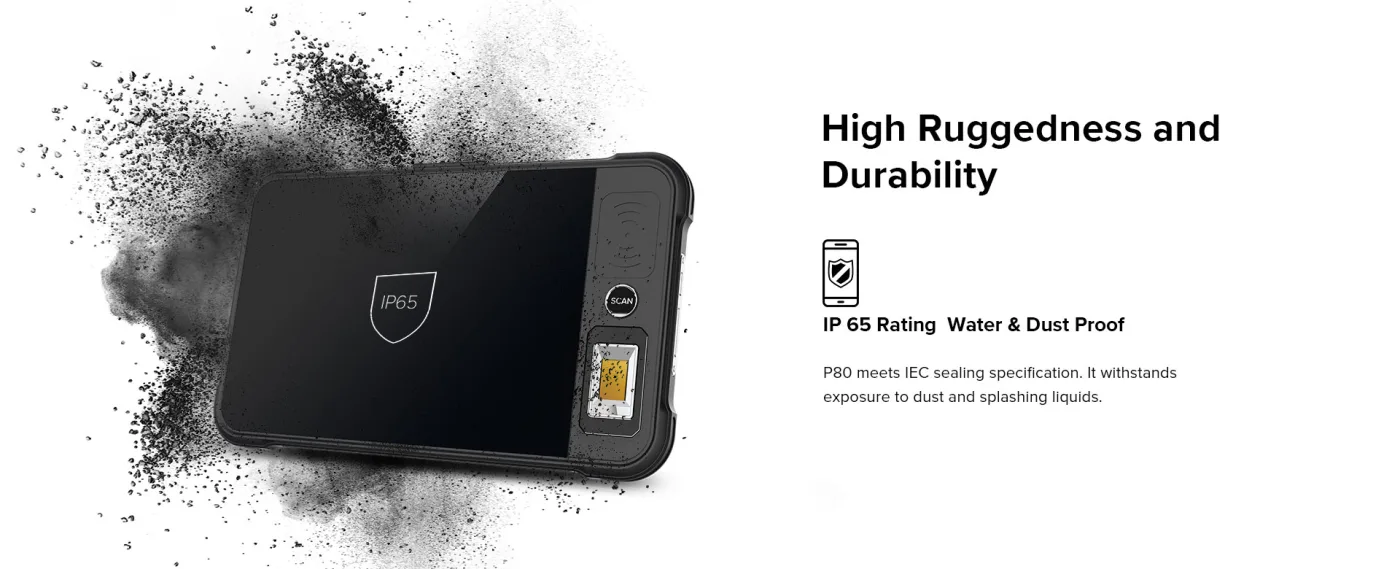

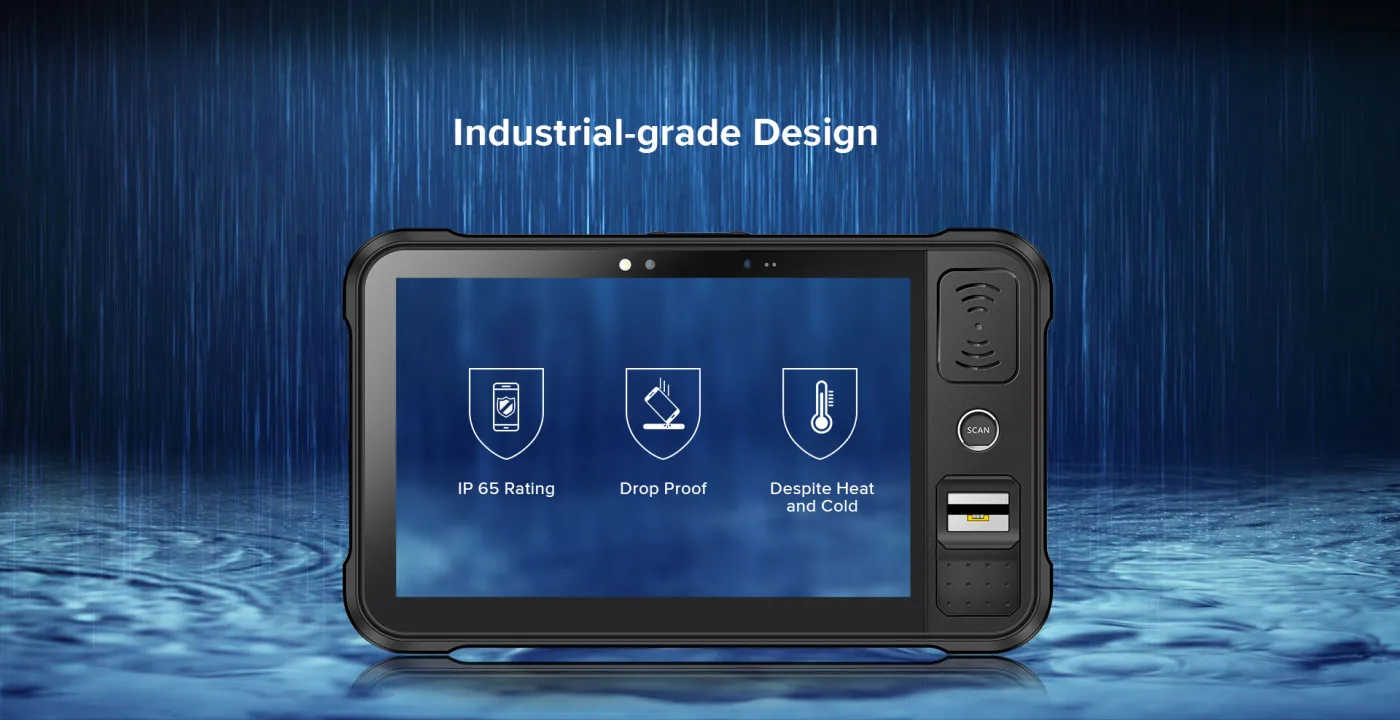

| Sealing | IP65 per IEC sealing specifications |

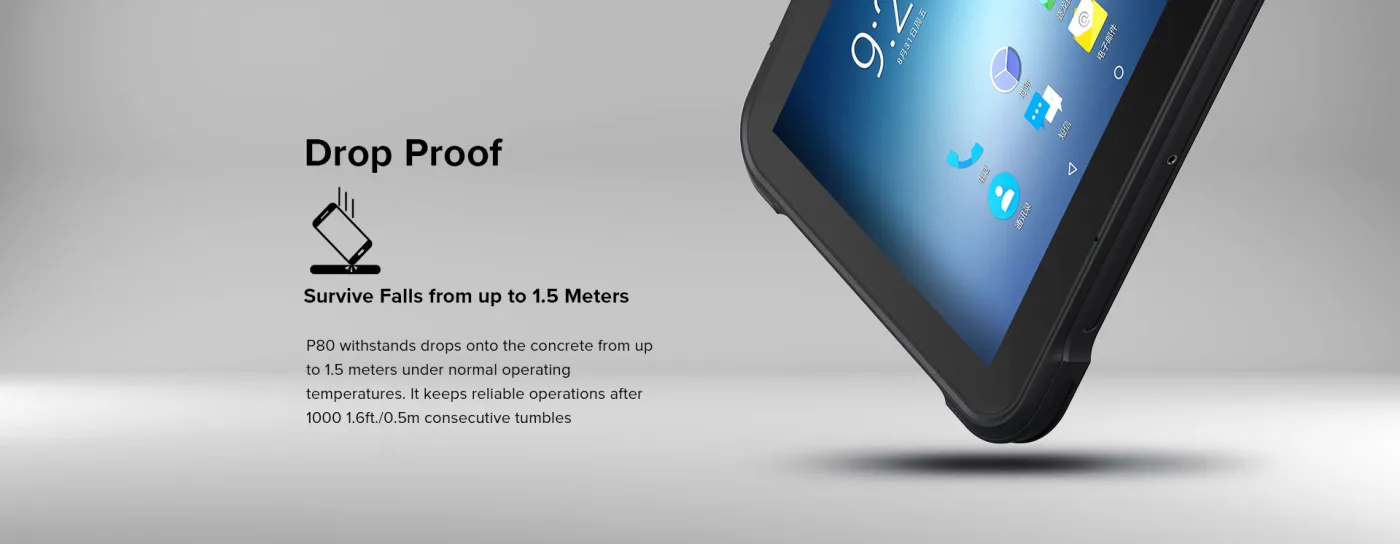

| Drop Specification | Multiple 1.5 m / 4.9 ft. drops ( at least 20 times ) to the concrete across the operating temperature range |
| Tumble Specification | 500 x 0.5 m / 1.64 ft. falls at room temperature |

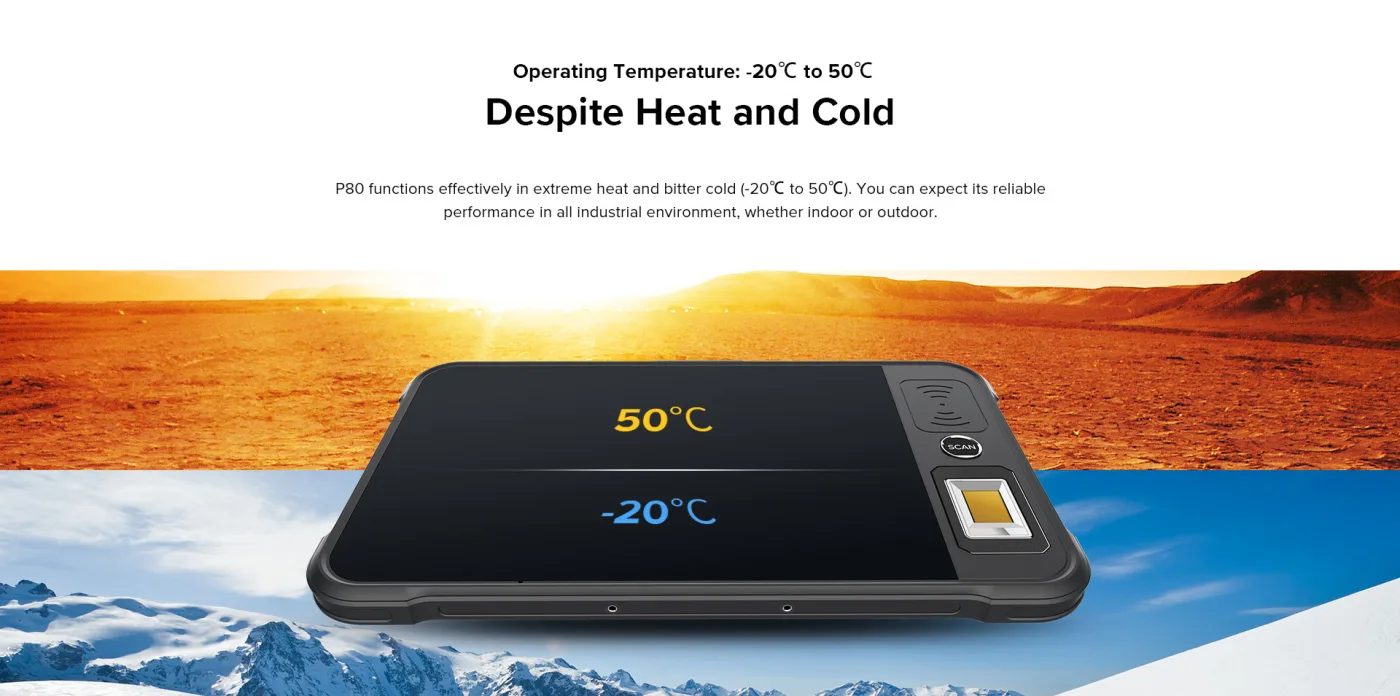

| Operating Temp. | -4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% RH - 95% RH non condensing |
Communication
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6;Fast roaming: PMKID caching, 802.11r, OKC;Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna |
| Operating System | Android 9; GMS, 90-day security updates, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported |
| CPU | Octa-core 1.8GHz ; GMS&AER |
| RAM+ROM | 3GB + 32GB4GB + 64GB (optional) |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |

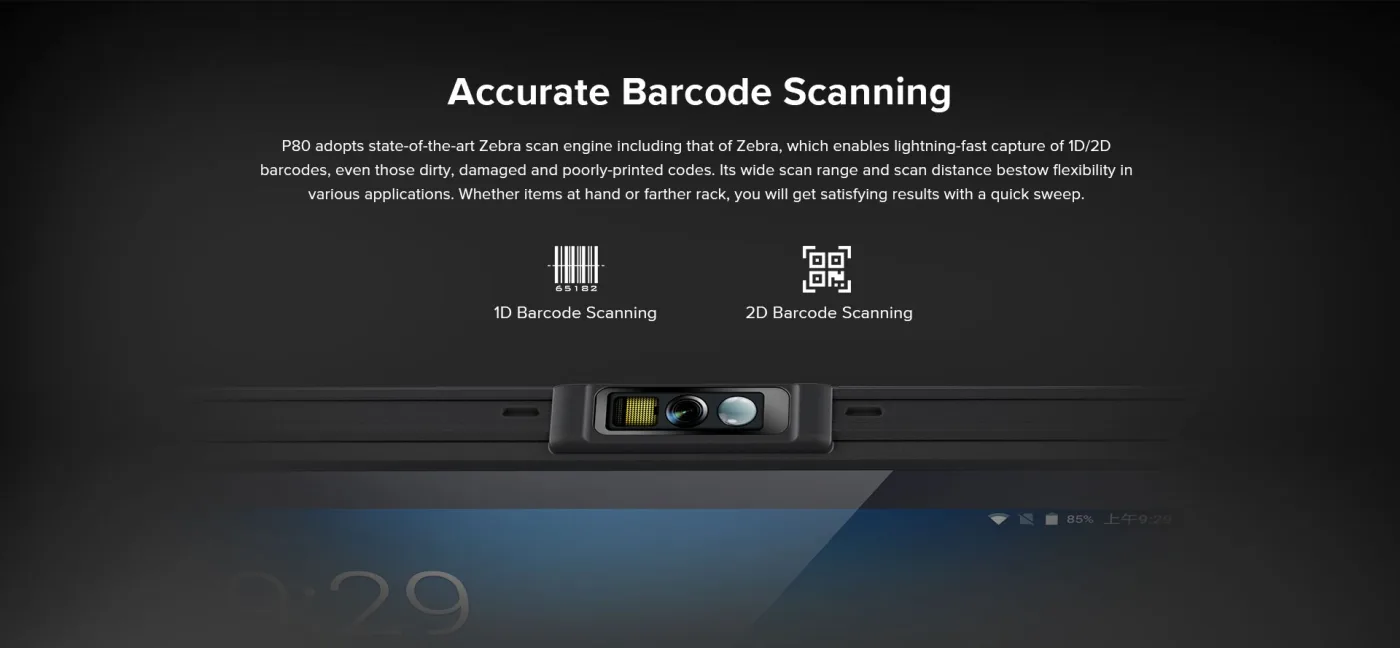

| 2D Imager Scanner | Zebra SE4710 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Resolution (dpi) | 500 dpi, 256 greylevel |

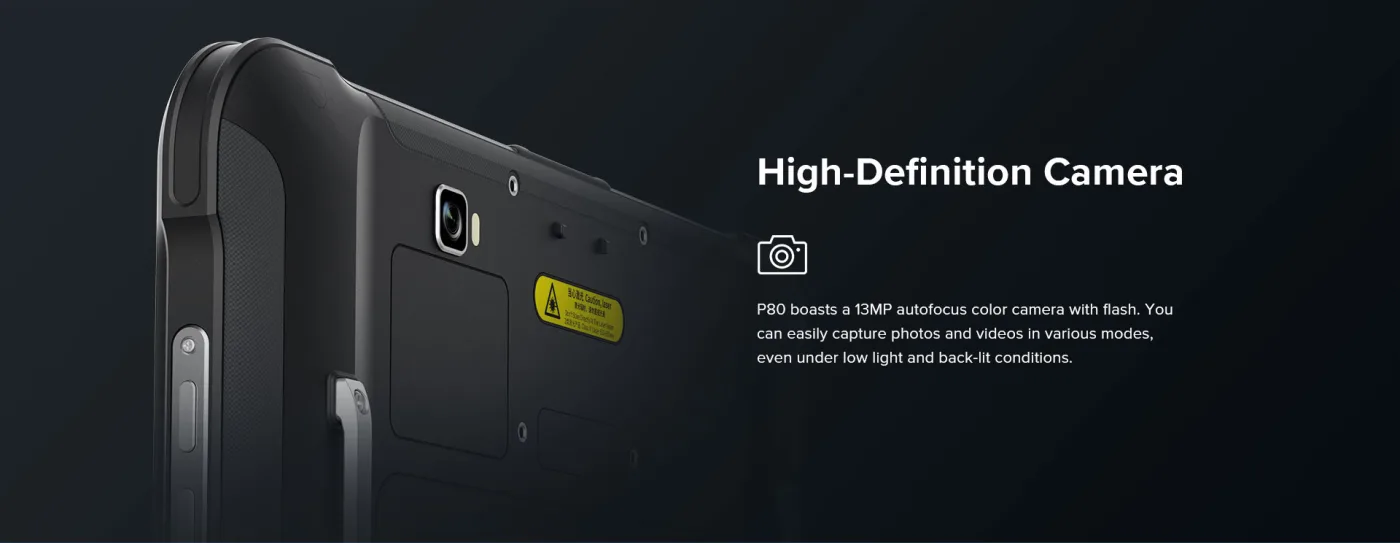

| Rear Camera | 13MP autofocus rear camera with flash |

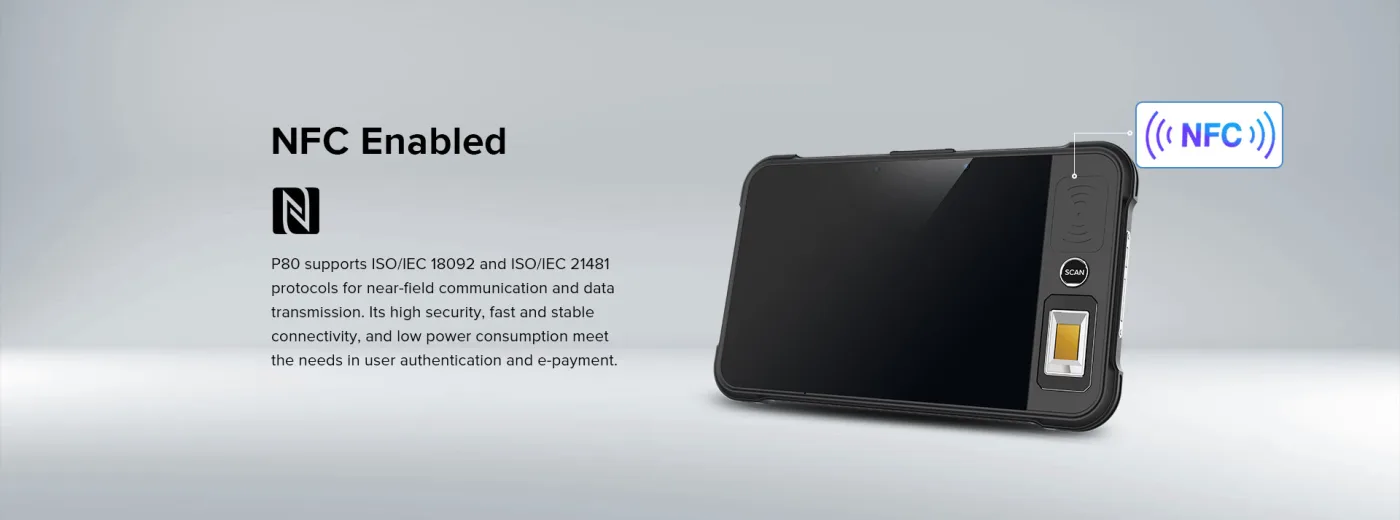

| Frequency | 13.56 MHz |
| Chips | M1 card ( S50, S70 ), CPU card, NFC tags, etc. |
| Protocol | ISO7816 |
| Range | 2-4 cm |

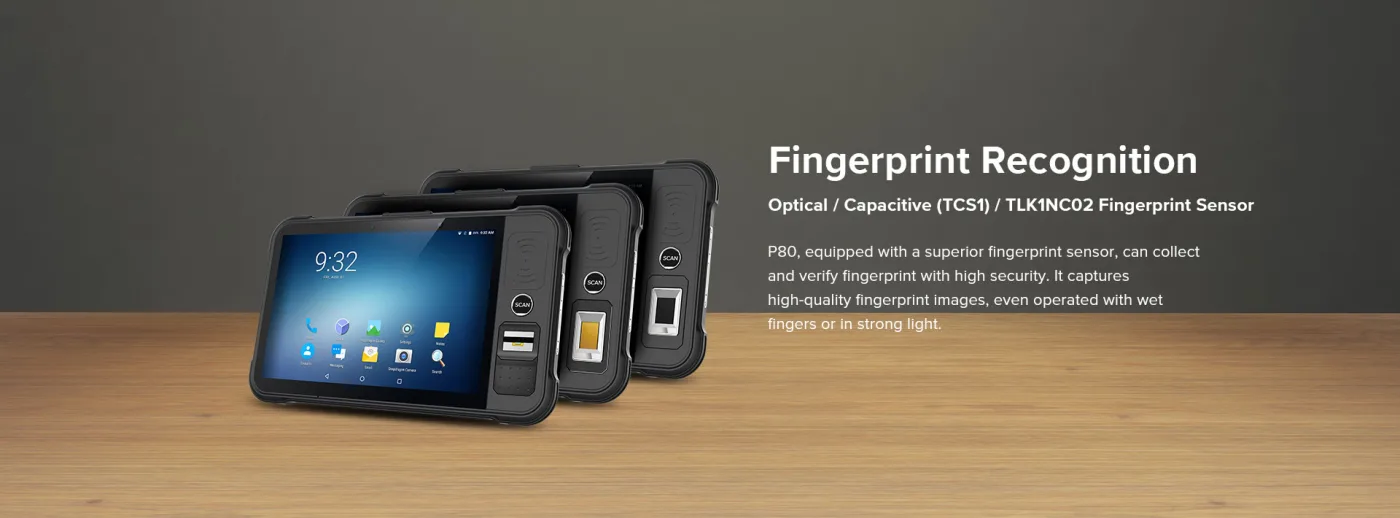

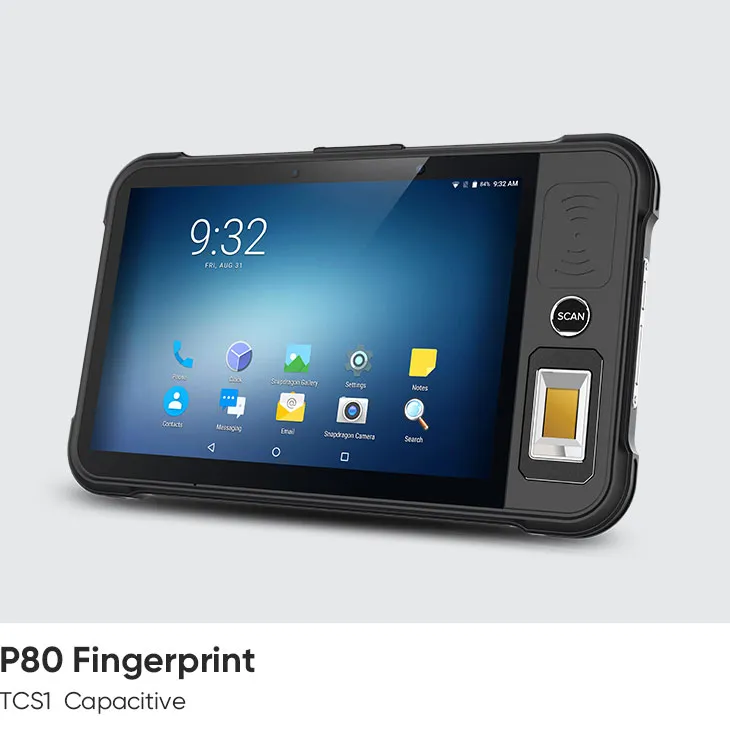

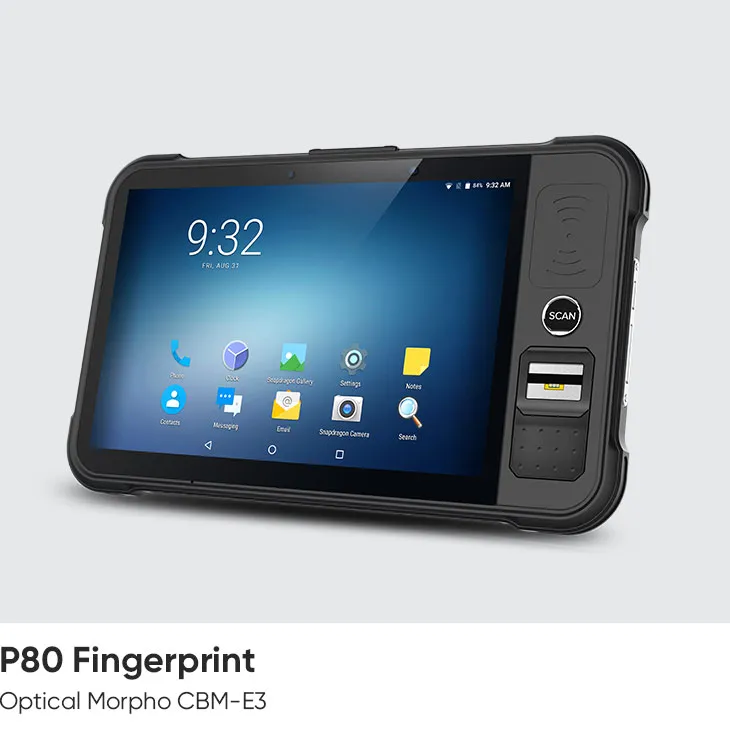

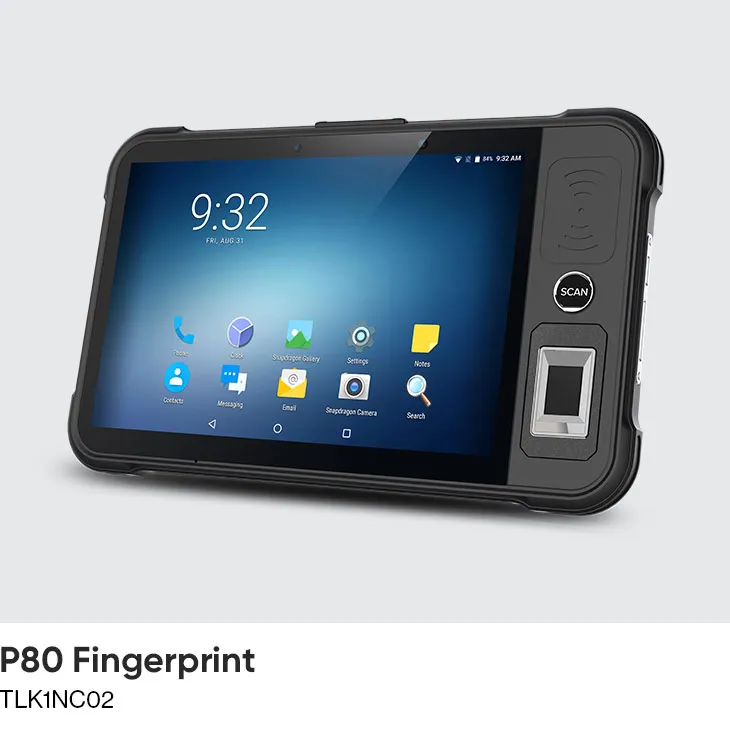

| Sensor | Optical Morpho CBM-E3 |
| Sensing Area (mm) | 14 x 22 |
| Format Extraction | ISO 19794-2/4, WSQ, ANSI 378, etc. |
| Security | FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc. |
| Certifications | FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |

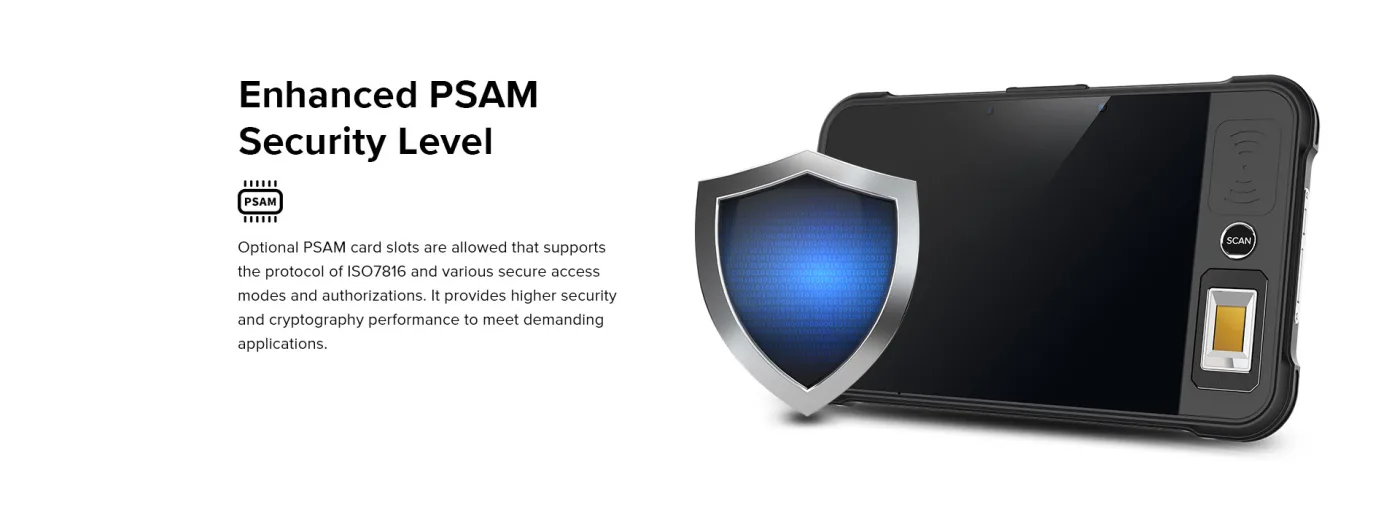

| Slots | 2 PSAM card slots |

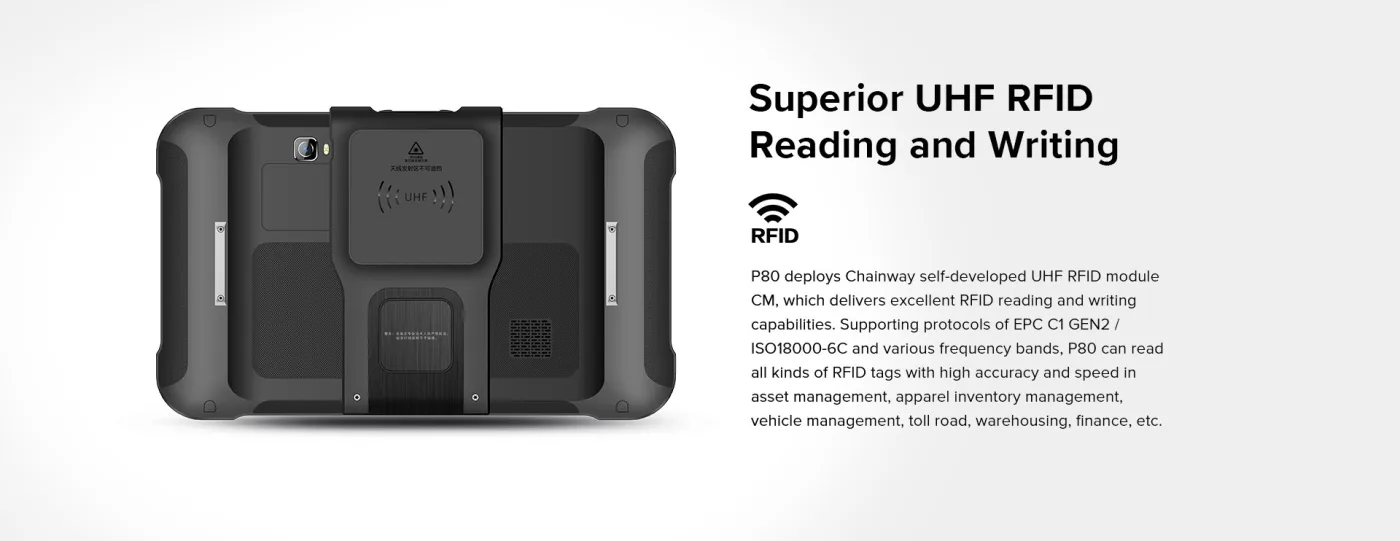

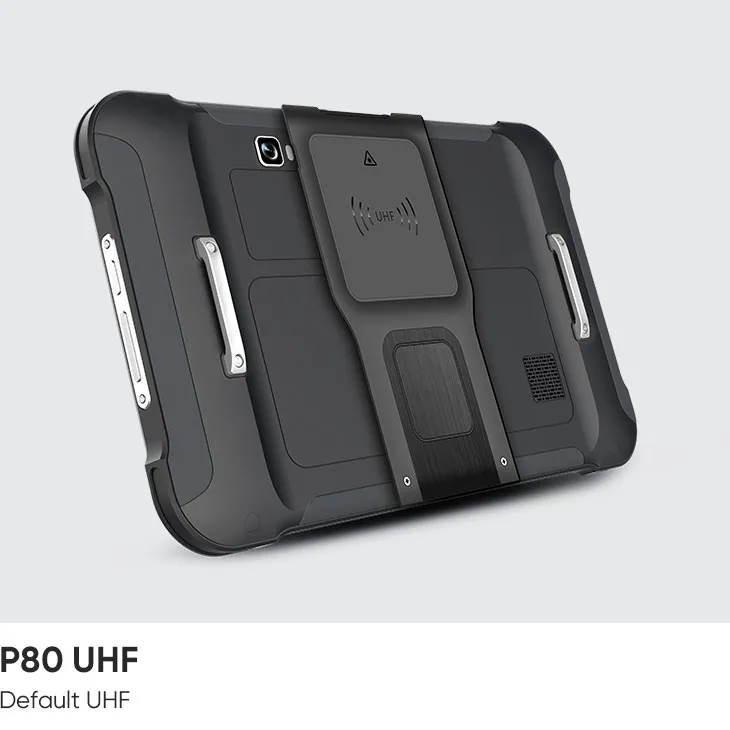

| Engine | Based on Impinj E Series chips |
| Antenna | Circular polarization |
| Front Camera | 8 MP |
| Max Read Range | 30 cm |
| WWAN (America) | 3G: WCDMA: B2/B4/B54G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B |
| Fastest Read Rate | 900+ tags/sec |
| WWAN (Europe, Asia) | 2G: 850/900/1800/1900MHz, GPRS, EDGE3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20 |
| Fake Finger Detection | Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Pape |
