R5 Wearable RFID Reader
Chainway R5 is a newly-developed wearable UHF reader that enables read distance of 14m. Additionally, it supports the Impinj Gen2X for enhanced RFID performance. It allows user information interaction via Bluetooth coordinated with APP or SDK. And it also can be paired with Android/iOS device to expand RFID capability. This RFID reader can be suitable for warehousing, power inspection, asset management, retail, etc., which provides users with more flexibility to efficiently finish their tasks at hand.
Price
Custom quote
Features
Android / iOS SDK
Self-Developed Module Based on Impinj E Series chips
Configurator
+€45
+€11
+€23
+€28
+€12
+€24
+€55
+€294
Request a Quote
Selected configuration
R5 Wearable RFID Reader
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 108 mm × 78 mm × 18 mm |
| Weight | 200 g / 7.05 oz. |

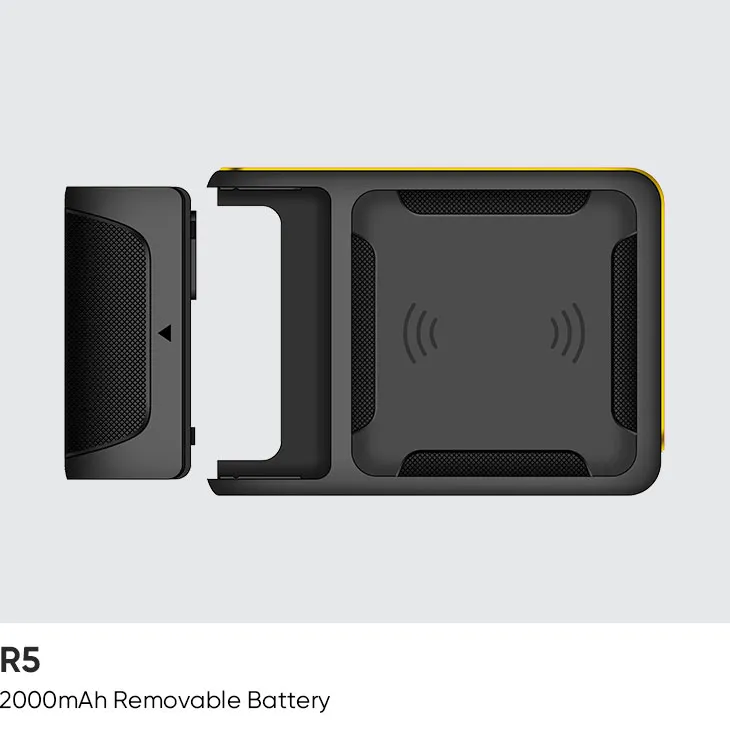

| Battery | 2000 mAh (removable) |
| Power | 1W (30dBm, support +5~+30dBm adjustable)2W Optional (33dBm, for Latin America, etc.) |
| Keypad | ON/OFF, SCAN |
| Sealing | IP65 |
| Drop Specification | 1.5 m dropping on concrete |
| Operating Temp. | -20 °C to +50 °C |
| Storage Temp. | -40 °C to +70 °C |
| Humidity | 5% RH - 95% RH non condensing |
Communication
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| SDK | Android / iOS SDK Supported |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |

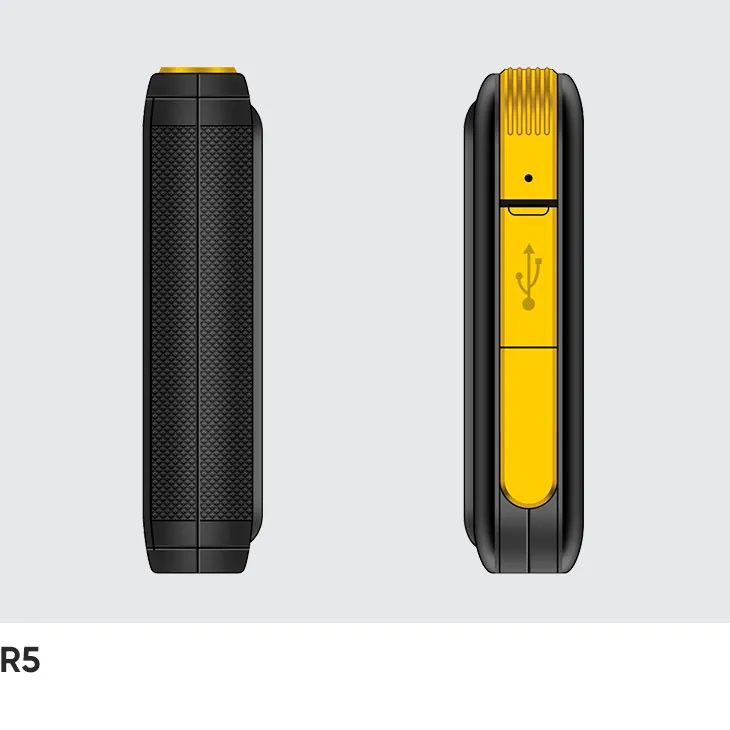

| Port | USB Type C |
| Engine | Based on Impinj E Series chips |
| Antenna | Circular Polarized Antenna |
| USB Type C | USB connection to realize data transfer |

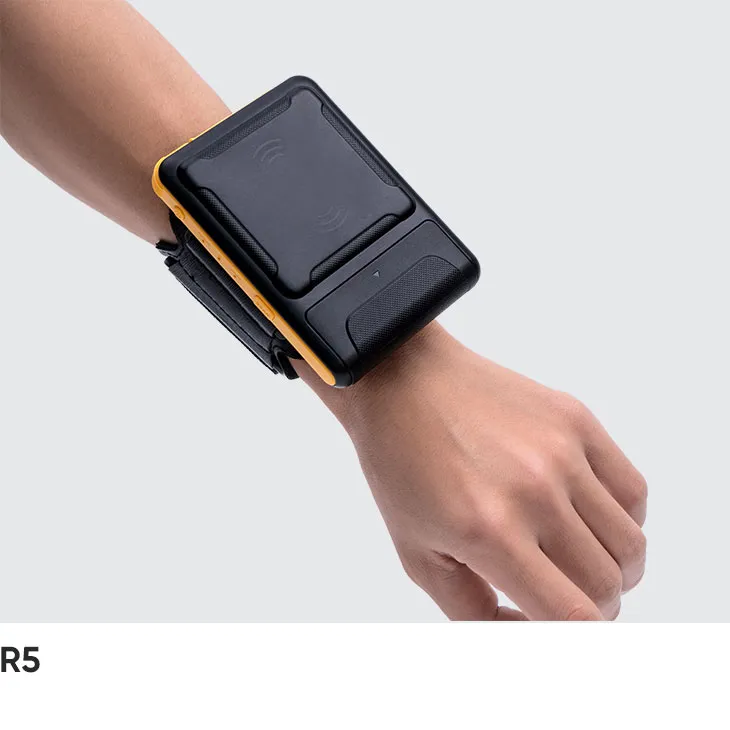

| Accessories | Wrist strap, arm strap, magnetic handle |
| Impinj Gen2X | Supported |
| Indicator LED | Red indicator will be ON when chargingGreen indicator will be ON when device has been fully chargedBlue indicator will be ON when battery is higher than 20%Blue indicator will flash when battery is lower than 20%Bluetooth is not paired when bluetooth indicator is OFFBluetooth is paired when bluetooth indicator is ON |
| Max Read Range | 11m (Impinj MR6 tag, size 70 x 15mm)12m (Impinj M750 tag, size 70 x 15mm)14m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Charging Current | 5 V / 1.5 A |
| Charging Duration | 2 hours |
| Fastest Read Rate | 900+ tags/sec |
