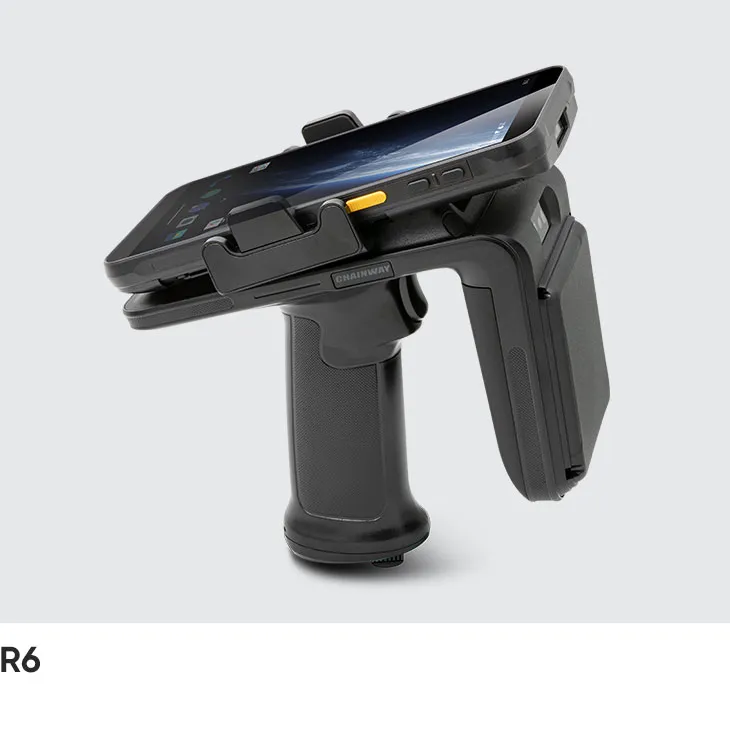

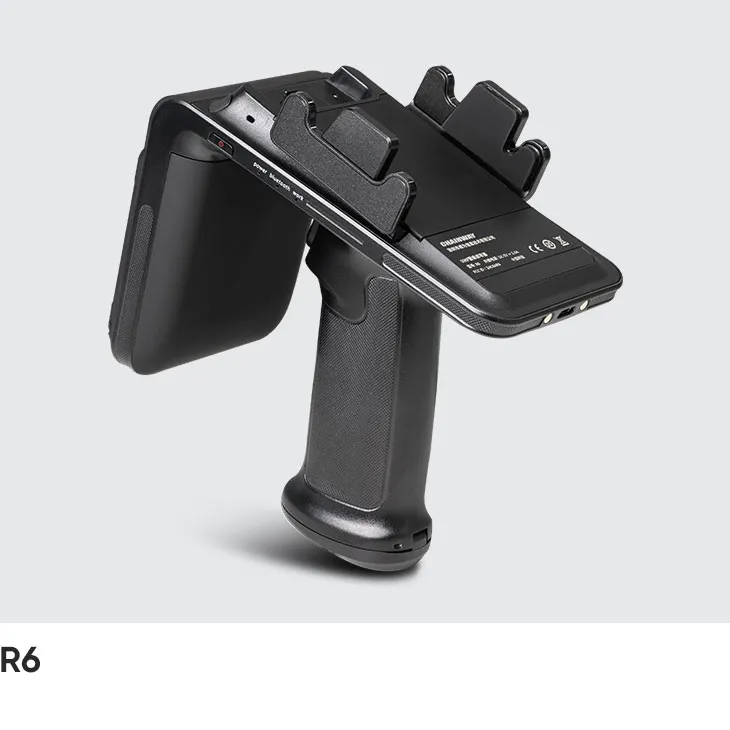

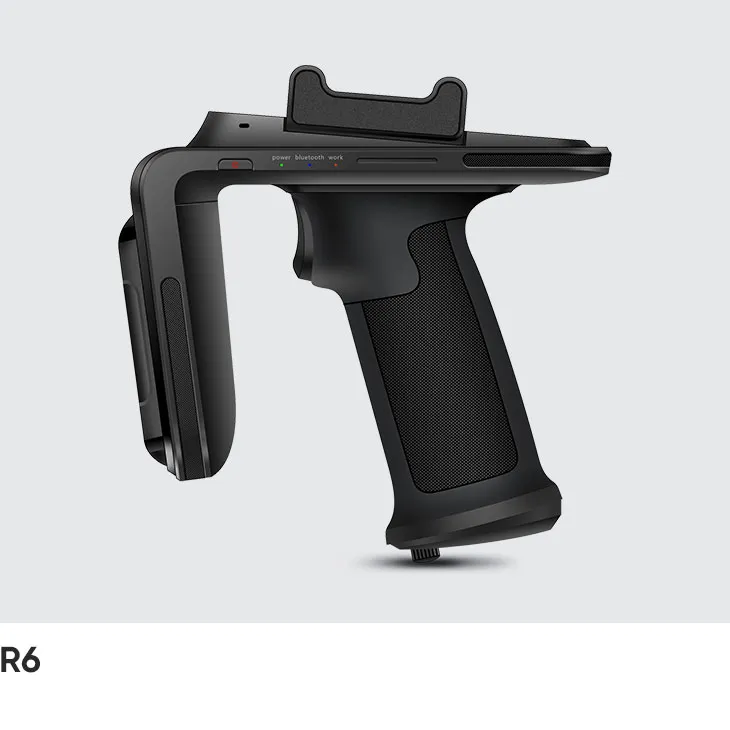

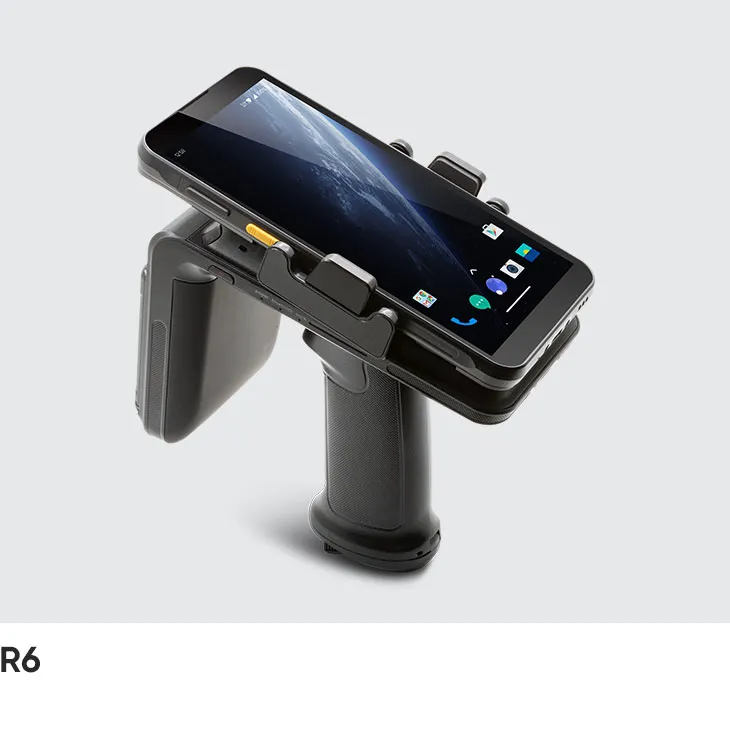

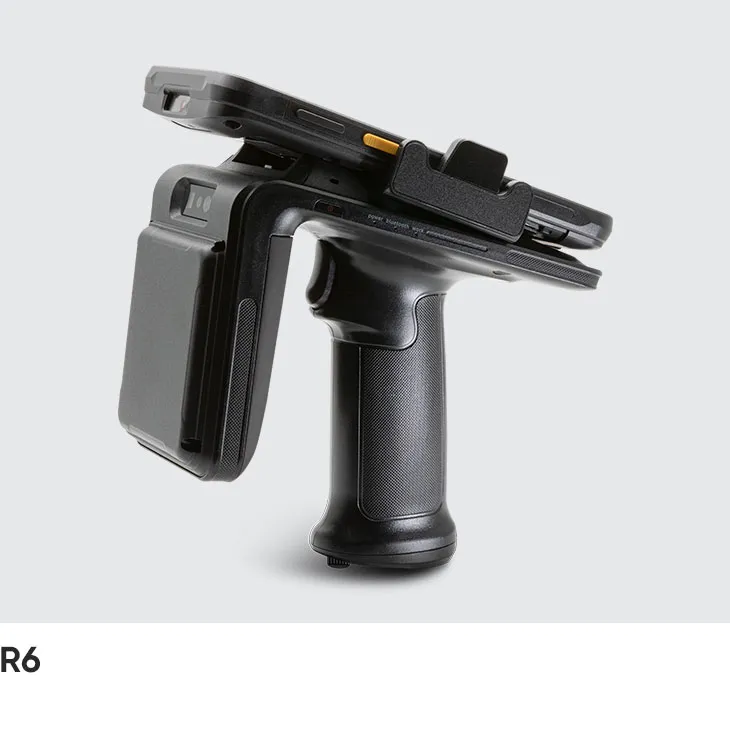

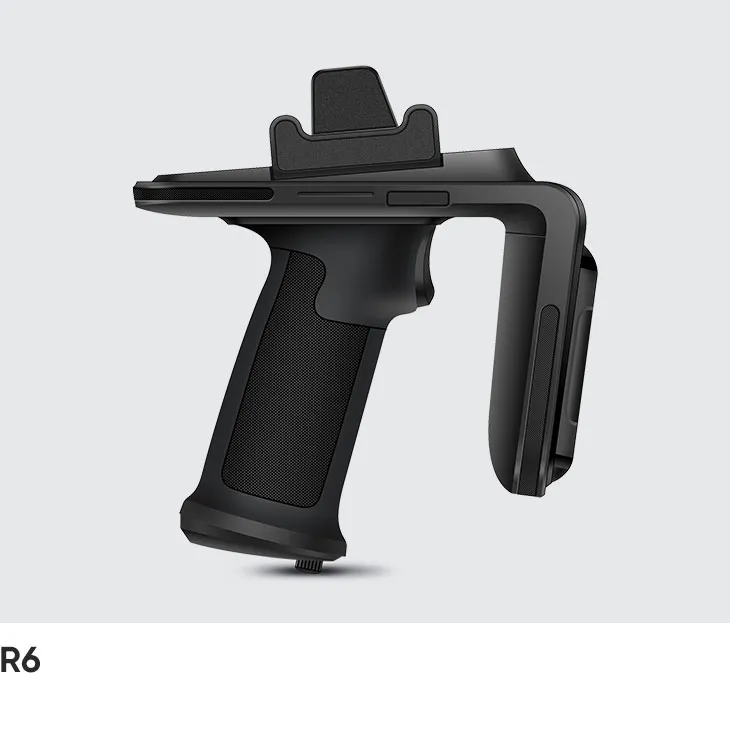

R6 UHF RFID Sled Reader
Chainway R6 is specially designed for a complete one-piece solution with smart phone / PDA. Paired with Android / iOS-based smart phone and terminal, it can be easily transformed into a professional data collection device. Built with Impinj E Series chips and supports Impinj Gen2X, it features more powerful UHF reading and writing that enables read distance of over 31m outdoors. The RFID reader is comfortable in hand, easily detached, and can fulfill tasks in power patrol inspection, apparel cycle-counting, warehousing, asset management, fleet management, finance, etc.
Price
Custom quote
Features
Flexible Attachment and Removal for Fast Setup
Self-Developed UHF Module Based on Impinj E Series chips
Configurator
+€375
+€415
+€516
Request a Quote
Selected configuration
R6 UHF RFID Sled Reader
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in. |
| Weight | RFID configuration: 438 g (including battery) RFID + Engine configuration: 446 g (including battery) |
| Power | Battery specification: 5200 mAh removable batteryStandby: over 70 hours (keeping bluetooth connected)Continuous use: up to 2.5 hours (UHF reading: 400 tags)Charging time:4-5 hours (with standard adaptor and USB cable) |
| Interfaces | USB 3.0 Type-C |
| Sealing | IP54 per IEC sealing specifications |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Operating Temp. | -4℉~+122℉ / -20℃~+50℃ |
| Storage Temp. | -40℉~+158℉ / -40℃~+70℃ |
| Humidity | 5%RH - 95%RH non condensing |
Communication
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| SDK | Android / iOS |
| Language | Java / Objective-C |
| Tool | Android Studio / Xcode |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Frequency | FCC: 902 MHz – 928 MHz; 36 dBm (EIRP)EU: 865.6 MHz - 867.6 MHz; 35 dBm(EIRP)CH: 920.5 MHz- 924.5 MHz; 35 dBm (EIRP) |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Buzzer | Support |
| Colour | Black |
| Engine | Based on Impinj E Series chips |
| Antenna | Circular Polarized Antenna |
| Impinj Gen2X | Supported |
| Output Power | 1-30, step 1dB |
| Indicator LED | Power, Work, Bluetooth |
| Max Read Range | >26m (Impinj M830 tag) |
| Product Material | ABS, Aluminum Alloy |
| Fastest Read Rate | 1000+ tags/sec |
| Size of adapted phone | Sled Reader: Width 68~80 mm, thickness ≤ 22 mmOthers: Based on phone case or holder |
