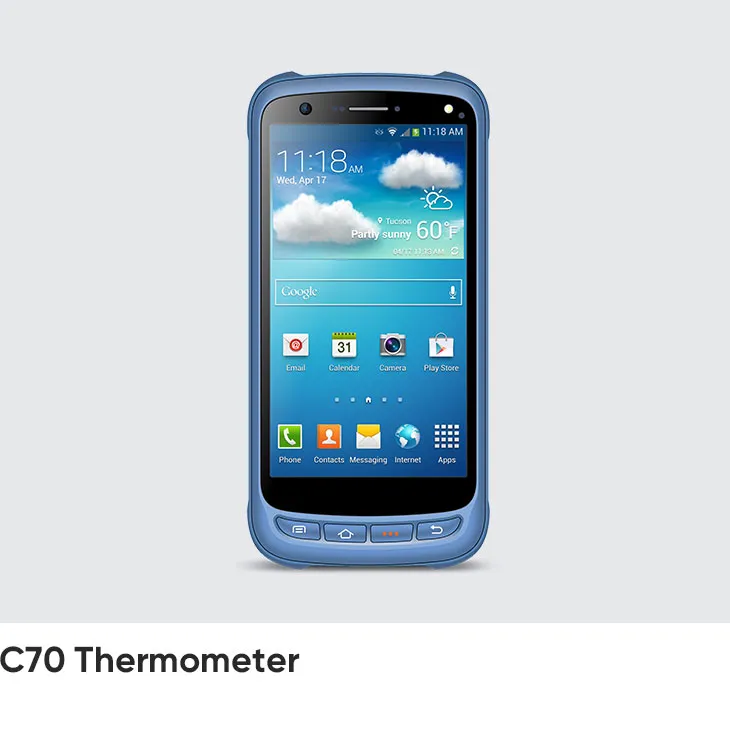

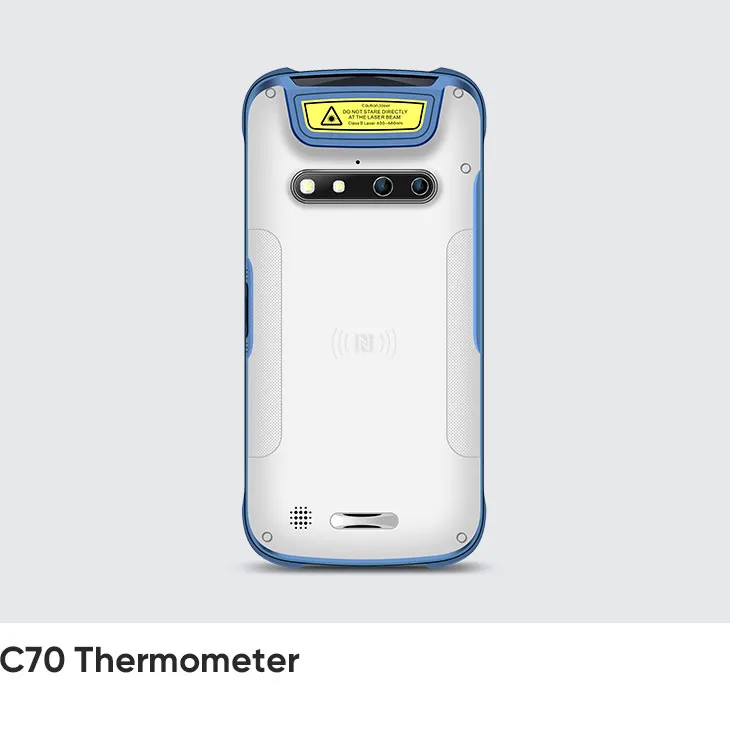

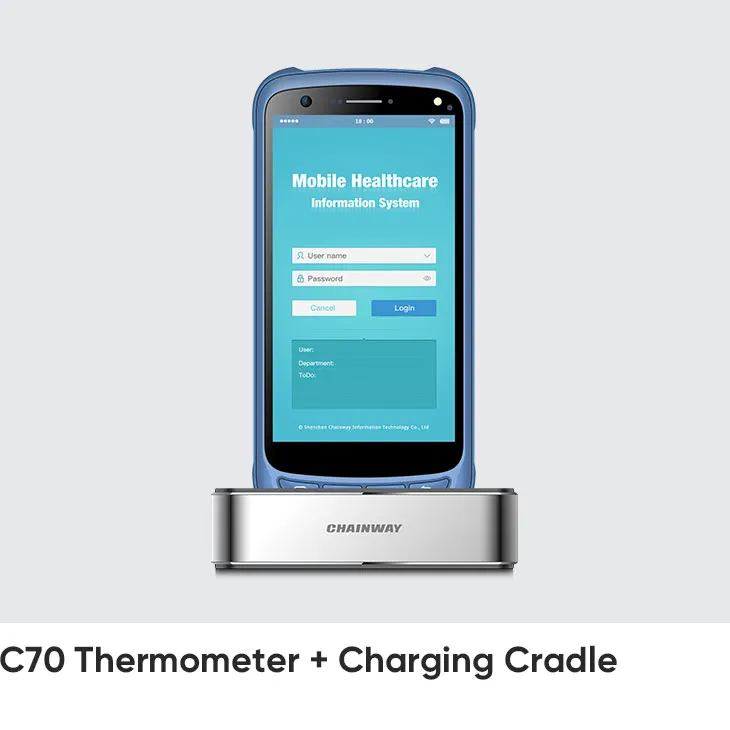

C70 Mobile Computer with Thermometer
Chainway C70 is a high-performance handheld computer specially developed for temperature measurement. Based on Android 11 and Octa-core processor, it features first-class configuration and fast processing. With integrated infrared temperature measurement module, the device supports non-contact temperature measurement of human forehead and object, and can be widely used in various temperature measurement scenarios. The temperature measurement module on the top brings great convenience to users. And it also offers optional NFC, barcode scanning, etc.
Price
Custom quote
Google Mobile
Services
Services
Android Enterprise
Recommended
Recommended
90-day Security
Updates
Updates
Features
Android 11
Temperature Measurement
Request a Quote
Selected configuration
C70 Mobile Computer with Thermometer
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 163.8*79.2*13.8 mm / 6.45*3.12*0.54 in. |
| Weight | < 242 g / 8.5 oz. |
| Display | 5.2'' IPS LTPS 1920 x 1080 |
| Power | Main battery: Li-ion, rechargeable, 4000mAhStandby: over 300 hoursContinuous use: over 12 hours (depending on user environment)Charging time: 2-3 hours (with standard adaptor and USB cable) |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB2.0 Type-C, OTG |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Expansion | Supports up to 256GB Micro SD (TF) card |
| Audio | 2 microphones，1 for noise cancellation；1 speaker；receiver |
| Keypad | 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Sealing | IP65 / IP67 per IEC sealing specifications |
| Drop Specification | Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to theconcrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Operating Temp. | -4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5%RH - 95%RH non condensing |
Communication
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS19003G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Operating System | Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
| CPU | Octa-core, 2.3GHz |
| RAM+ROM | 3GB + 32GB / 4GB + 64GB |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| 2D Imager Scanner | Zebra SE4710 / Honeywell N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Frequency | 13.56MHz |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Range | 2-4cm |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
| Camera | 13MP Autofocus with flash, optional 5MP front camera |
| Resolution | 0.02°C |
| Measure Range | Human forehead: 32°C to 42.9°C; Object surface: -40°C to 115°C; |
| Measure Method | Non-contact / Infrared |
| Spectral Range | 5.5 -15 μm |
| Measure Accuracy | Human forehead: ±0.2°C; Object surface: ±0.5°C; |
| Measure Distance | 1-3 cm |
| Measure Duration | ≤1S |
| Measure Position | Human forehead / Object surface |
