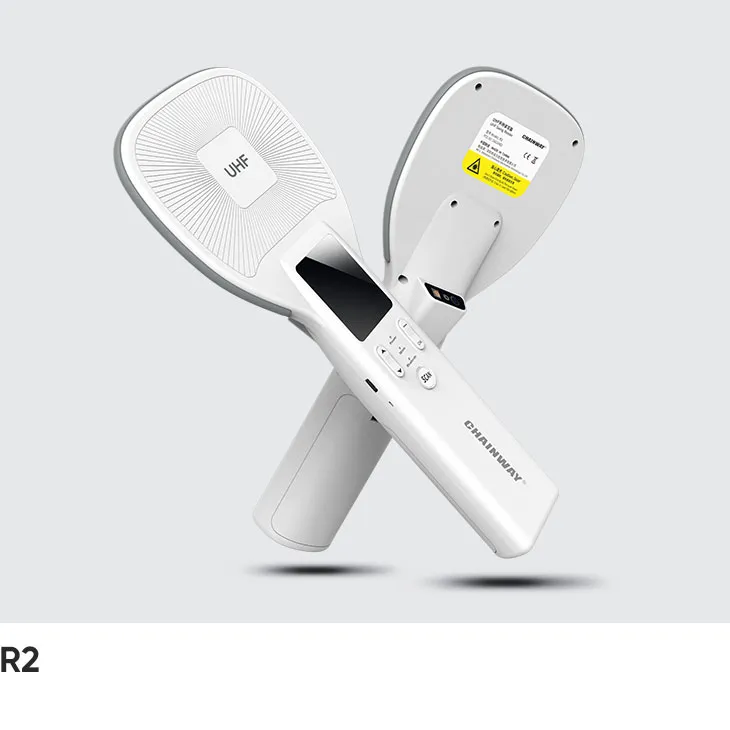

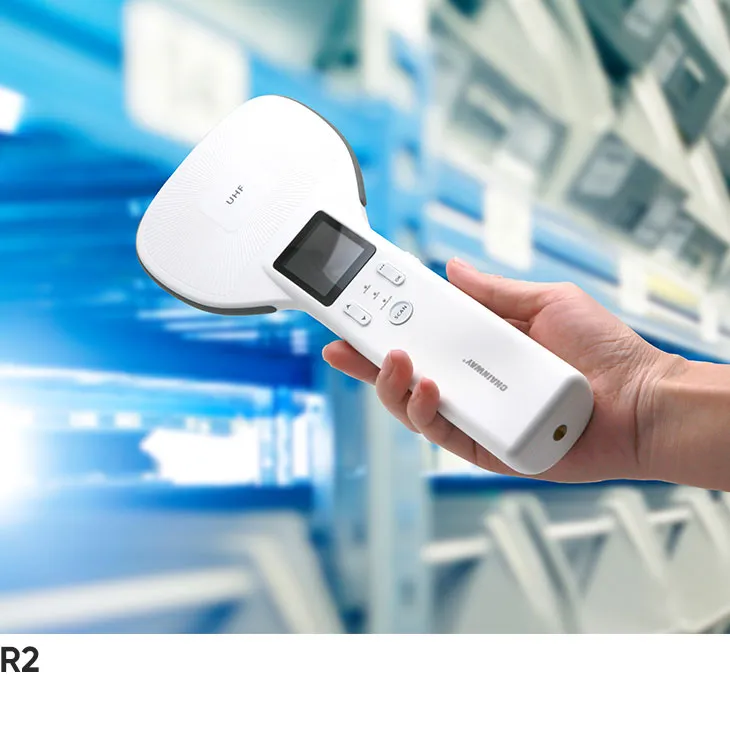

R2 Bluetooth RFID Reader
Gen2X Handheld RFID reader, 865-868 MHz / 920-925 MHz / 902-928 MHz, Outpower 30-33dBm dependent, Reading distance 30M, Reading speed 900 tags/s, Bluetooth (BLE 5.0), Battery 5200 mAh, Linear Polarized antenna(4dBi), USB Type-C, UHF | Aliases: R2-U7EL
Starting from
€348
Features
Ergonomic Design for Ease of Use
Self-Developed UHF Module Based on Impinj E Series chips
Configurator
Base model
- Gen2X Handheld RFID reader
- 865-868 MHz / 920-925 MHz / 902-928 MHz
- Outpower 30-33dBm dependent
- Reading distance 30M
- Reading speed 900 tags/s
- Bluetooth (BLE 5.0)
- Battery 5200 mAh
- Linear Polarized antenna(4dBi)
- USB Type-C
- UHF
+€32
+€19
Request a Quote
Selected configuration
R2-U7CL
€348
Total list price:
€348
Downloads
Documents & Manuals
Videos
Technical Specifications
Physical Characteristics
| Dimensions | 282 x 117.5 x 32mm / 11.10 x 4.63 x 1.26in. |
| Weight | 334 g / 11.78oz. (with battery) |
| Display | 1.77 inch, 128 x 160 |
| Power | Battery specification: 5200 mAhStandby: over 70 hours (keeping bluetooth connected)Continuous use: up to 6 hours (UHF reading)Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Interfaces | USB Type-C |
| Drop Specification | Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| Operating Temp. | -20℃~+50℃ |
| Storage Temp. | -40℃~+70℃ |
| Humidity | 5%RH - 95%RH non condensing |
Communication
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| SDK | Android / iOS |
| Language | Java / Objective-C |
| Tool | Android Studio / Xcode |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| MCU | Cortex-M372MHz |
| Buzzer | Support |
| Colour | White |
| Engine | Based on Impinj E Series chips |
| Antenna | Linear Polarized antenna |
| Storage | 50000 tags |
| Impinj Gen2X | Supported |
| Indicator LED | Power, Work, Bluetooth |
| Max Read Range | 26m (Impinj MR6 tag, size 70 x 15mm)27m (Impinj M750 tag, size 70 x 15mm)31m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Product Material | Plastic |
| Fastest Read Rate | 900+ tags/sec |
